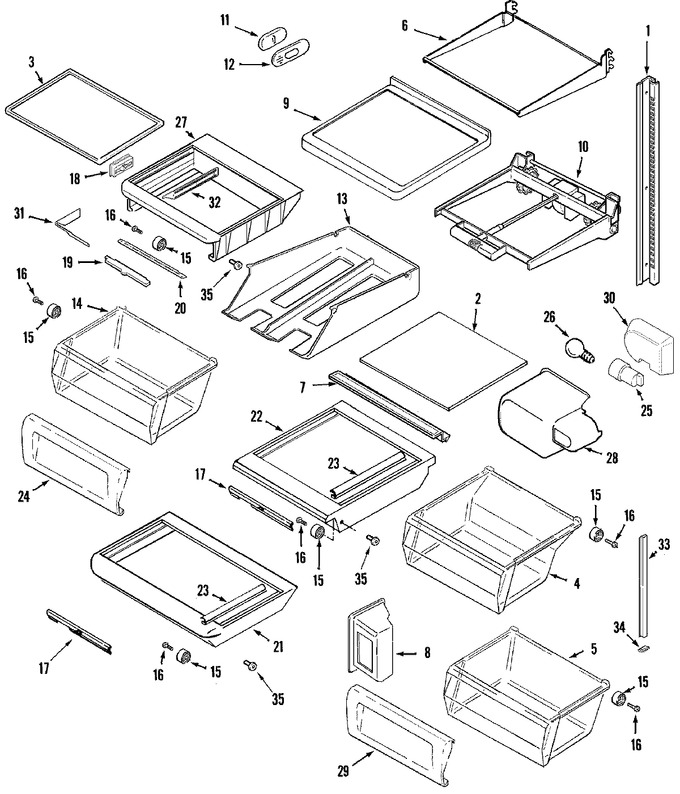

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 61003708 | Rail, Shelf Support | 11 |
|
- | ||||
| 1 | WP489478 | Screw (Replaces: 400017-1) | 11 |
|
$ 6.98 | ||||
| 2 | 61003927 | Glass, Crisper Shelf | 11 |
|
- | ||||
| 2 | 61003926 | Glass, Crisper Shelf | 11 |
|
- | ||||
| 3 | 61003928 | Glass, Meat Shelf | 11 |
|
- | ||||
| 4 | 61003929 | Pan, Crisper | 11 |
|
- | ||||
| 4 | 61005713 | Pan Assy., Crisper (upr) | 20 |
|
- | ||||
| 5 | 61005622 | Pan Assy., Crisper (lwr) | 20 |
|
$ 63.03 | ||||
| 5 | 61003930 | Pan, Crisper | 11 |
|
- | ||||
| 6 | 61004229 | Frame, Shelf | 11 |
|
- | ||||
| 6 | 61003738 | Frame, Slide Out Shelf----na | 11 |
|
- | ||||
| 7 | 61003932 | Seal | 11 |
|
- | ||||
| 7 | 61003931 | Seal, Crisper Shelf | 11 |
|
- | ||||
| 8 | WP61006081 | Cover Assy., Air Return (Replaces: 61004287) | 11 |
|
$ 80.27 | ||||
| 9 | 61004389 | Shelf, Elevator | 11 |
|
- | ||||
| 9 | 61003942 | Shelf, Slide-out | 11 |
|
- | ||||
| 10 | 61003933 | Frame Assy., Elevator Shelf | 11 |
|
- | ||||
| 11 | 61003725 | Retainer, Duct | 11 |
|
- | ||||
| 11 | 61003945 | Slide, Control (chill Compt.) | 11 |
|
- | ||||
| 12 | 61003946 | Housing, Control Slide | 11 |
|
- | ||||
| 13 | 61002406 | Rack, Can | 11 |
|
- | ||||
| 14 | 61005715 | Pan Assy., Meat | 20 |
|
- | ||||
| 14 | 61003934 | Pan, Meat | 11 |
|
- | ||||
| 15 | 67423-2 | Roller | 11 |
|
$ 20.83 | ||||
| 15 | WP61002307 | Roller (Replaces: 61002307) | 20 |
|
Immediately | $ 7.30 | |||
| 16 | WP61002308 | Screw (Replaces: 61004728) | 20 |
|
$ 6.89 | ||||
| 16 | 65275-6 | Screw | 11 |
|
$ 5.48 | ||||
| 17 | 61003781 | Slide, Control | 11 |
|
- | ||||
| 18 | 61003785 | Duct, Air (meat) | 11 |
|
- | ||||
| 18 | 61003725 | Retainer, Duct | 11 |
|
- | ||||
| 19 | 61003674 | Slide, Control (meat) | 11 |
|
- | ||||
| 20 | 61003784 | Cover, Meat Pan Slide | 11 |
|
- | ||||
| 20 | 489392 | Screw (Replaces: 415013-35) | 11 |
|
$ 12.02 | ||||
| 21 | 61003936 | Frame, Crisper Shelf | 11 |
|
- | ||||
| 22 | 61003937 | Frame, Crisper Shelf | 11 |
|
- | ||||
| 23 | 61003938 | Seal, Crisper Side | 11 |
|
- | ||||
| 23 | 61003714 | Seal, Crisper Side (upr) | 11 |
|
- | ||||
| 24 | 61004494 | Front Assy., Meat Pan | 11 |
|
- | ||||
| 25 | 70459-1 | Receptacle, Bulb | 11 |
|
- | ||||
| 25 | 67006425 | Screw (Replaces: 400017-35) | 11 |
|
Immediately | $ 6.26 | |||
| 26 | W11618980 | Bulb, Light (40w) (Replaces: 61002812) | 11 |
|
$ 19.22 | ||||
| 27 | 61003940 | Frame, Meat Shelf | 11 |
|
- | ||||
| 28 | 61003439 | Shield, Light | 11 |
|
$ 38.58 | ||||
| 29 | 61004495 | Front Assy., Crisper Pan | 11 |
|
$ 52.50 | ||||
| 30 | 61003690 | Base, Lampholder | 11 |
|
- | ||||
| 31 | 61003943 | Tape, Meat Control | 11 |
|
- | ||||
| 32 | 61003723 | Cover, Meat Control Tape | 11 |
|
- | ||||
| 32 | 489392 | Screw (Replaces: 415013-35) | 11 |
|
$ 12.02 | ||||
| 33 | 61003888 | Strip, Filler (sides) | 11 |
|
- | ||||
| 34 | 61004110 | Base, Filler Strip (lt) | 11 |
|
- | ||||
| 34 | 400019-1 | Screw | 11 |
|
- | ||||
| 34 | 61004109 | Base, Filler Strip (rt) | 11 |
|
- | ||||
| 35 | WP61005337 | Support, Crisper Shelf (Replaces: 61005337) | 10 |
|
Immediately | $ 10.46 | |||
| 35 | 61005338 | Screw | 10 |
|
- | ||||
| 35 | 67764-1 | Support, Crisper Shelf | 10 |
|
$ 8.05 | ||||
| 35 | WP489478 | Screw (Replaces: 400017-1) | 10 |
|
$ 6.98 |
