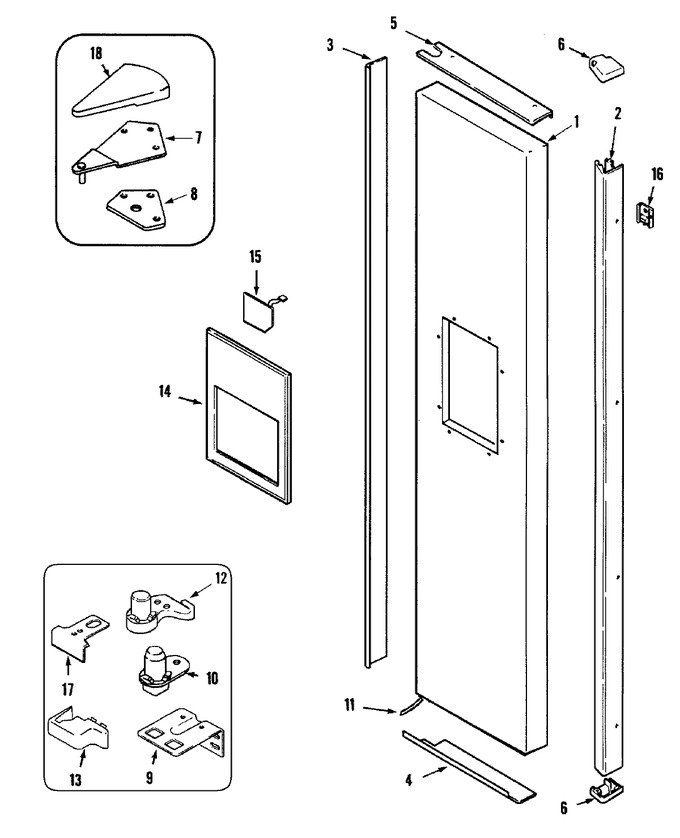

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	61005952		Panel, Frz. Door (wht)	12	Appelez-nous	-
2	61004331		Screw (wht)	12	Appelez-nous	-
2	61004519		Handle, Frz. Door (wht)	12	Appelez-nous	-
3	WP98008544		Screw (wht)   (Replaces: 61004171)	12			$ 11.89
3	61004827		Trim, Perimeter (side-wht)	12	Appelez-nous	-
4	WP98008544		Screw (wht)   (Replaces: 61004171)	12			$ 11.89
4	61004188		Trim, Perimeter (btm-wht)	12	Appelez-nous	-
5	61004829		Trim, Perimeter (top-wht)	12	Appelez-nous	-
5	WP98008544		Screw (wht)   (Replaces: 61004171)	12			$ 11.89
6	61004192		End Cap, Handle (wht)	12	Appelez-nous	-
6	WP59002061		Screw   (Replaces: 61004172)	12			$ 6.98
7	3400112		Screw   (Replaces: 61002022)	12			$ 62.96
7	61004896		Hinge, Upper	12			$ 36.71
8	61004518		Shim, Upper Hinge	12	Appelez-nous	-
9	3400112		Screw   (Replaces: 61003128)	12			$ 62.96
9	61001918		Hinge, Lower (wht)	12			$ 38.93
10	61003174		Pin, Lower Hinge	12			$ 6.22
11	WP2300868		Union, Reducing (5/16``-5/16``)   (Replaces: 61005808)	12		Immediately	$ 26.15
11	61004569		Tubing, Fountain	12	Appelez-nous	-
12	61005726		Closer, Door (w/cup)	12			$ 27.14
12	W10856122		Screw   (Replaces: 61002180)	12			$ 6.98
13	61003219		Cover, Lower Hinge (wht)	12			$ 5.79
14	489392		Screw   (Replaces: 415013-35)	12			$ 12.02
14	61005846		Escutcheon (wht)	12	Appelez-nous	-
15	61005834		Board, Ftn. Switch	12	Appelez-nous	-
15	61003422		Screw	12	Appelez-nous	-
16	61004179		Base, Handle	12			$ 5.02
16	W10856122		Screw   (Replaces: 61002180)	12			$ 6.98
17	61003273		Stop, Door	12	Appelez-nous	-
17	W10856122		Screw   (Replaces: 61002180)	12			$ 6.98
18	WP8281196		Screw, Cover   (Replaces: 61004641)	12		Immediately	$ 6.47
18	61004642		Cover, Upper Hinge (wht)	12			$ 15.16
