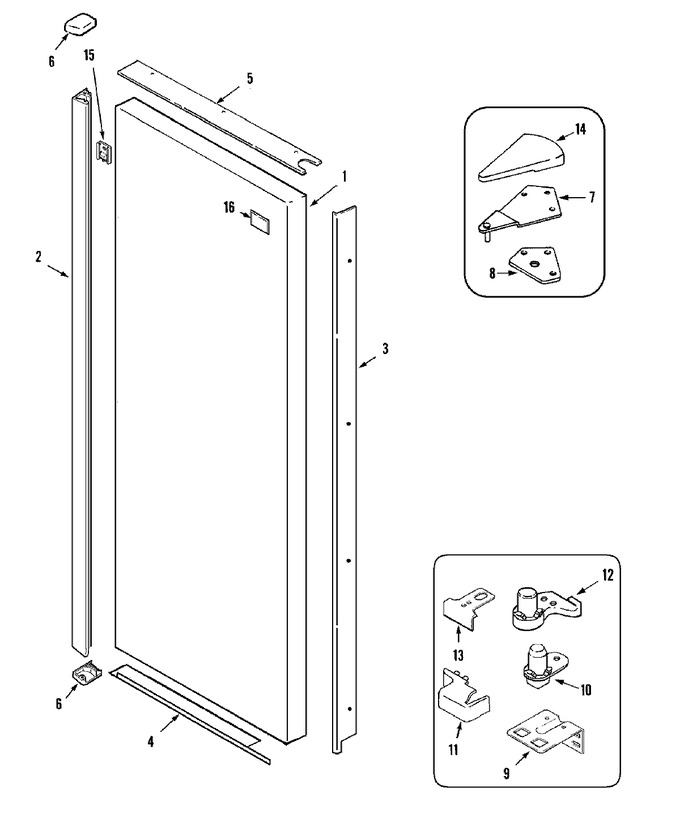

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	61005945		Panel, F.f. Door (wht)	12	Appelez-nous	-
2	61004331		Screw (wht)	12	Appelez-nous	-
2	61004517		Handle, F.f. Door (wht)	12	Appelez-nous	-
3	WP98008544		Screw (wht)   (Replaces: 61004171)	12			$ 11.89
3	61004827		Trim, Perimeter (side-wht)	12	Appelez-nous	-
4	WP98008544		Screw (wht)   (Replaces: 61004171)	12			$ 11.89
4	61004165		Trim, Perimeter (btm-wht)	12	Appelez-nous	-
5	WP98008544		Screw (wht)   (Replaces: 61004171)	12			$ 11.89
5	61004828		Trim, Perimeter (top-wht)	12	Appelez-nous	-
6	WP59002061		Screw   (Replaces: 61004172)	12			$ 6.98
6	61004169		End Cap, Handle (wht)	12	Appelez-nous	-
7	3400112		Screw   (Replaces: 61002022)	12			$ 62.96
7	61004896		Hinge, Upper	12			$ 36.71
8	61004518		Shim, Upper Hinge	12	Appelez-nous	-
9	3400112		Screw   (Replaces: 61003128)	12			$ 62.96
9	61001918		Hinge, Lower (wht)	12			$ 38.93
10	61003174		Pin, Lower Hinge	12			$ 6.22
11	61003220		Cover, Lower Hinge (wht)	12			$ 15.37
12	W10856122		Screw   (Replaces: 61002180)	12			$ 6.98
12	61005724		Closer, Door (w/cup)	12			$ 23.79
13	W10856122		Screw   (Replaces: 61002180)	12			$ 6.98
13	61003273		Stop, Door	12	Appelez-nous	-
14	61004640		Cover, Upper Hinge (wht)	12	Appelez-nous	-
15	W10856122		Screw   (Replaces: 61002180)	12			$ 6.98
15	61004179		Base, Handle	12			$ 5.02
16	66981-5		Bezel, Nameplate (wht)	12	Appelez-nous	-
