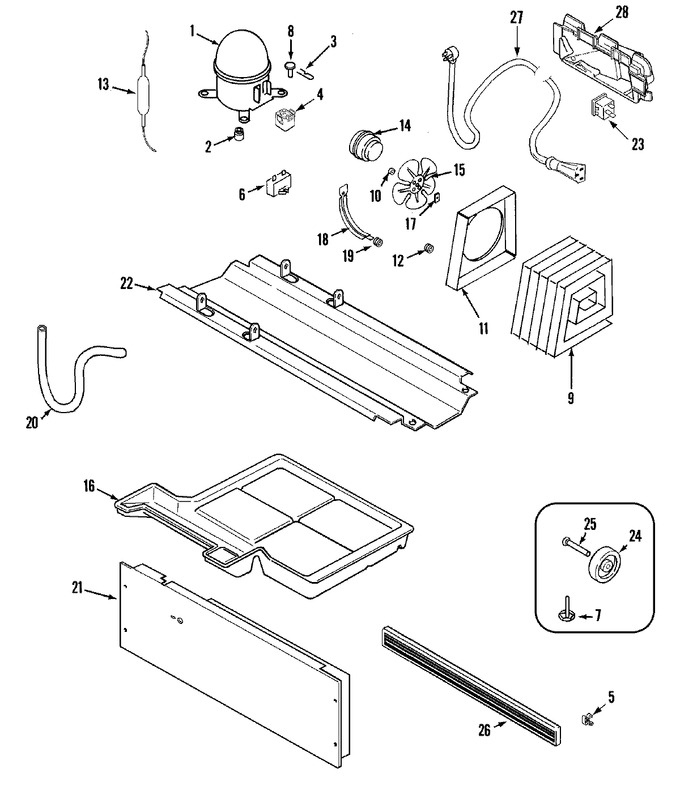

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 61005615 | Wire Harness, Compressor | 14 |
|
- | ||||
| 1 | 12002108 | Kit, Compressor (r134a) | 14 |
|
- | ||||
| 2 | WP4387558 | Grommet, Compressor (Replaces: 61005241) | 14 |
|
$ 6.26 | ||||
| 3 | 61003099 | Clip, Compressor | 14 |
|
- | ||||
| 4 | 61006139 | Relay/overload Assy. | 14 |
|
- | ||||
| 5 | 61001975 | Clip, Kickplate | 14 |
|
- | ||||
| 6 | WP489478 | Screw (Replaces: 400017-1) | 14 |
|
$ 6.98 | ||||
| 6 | WP2201147 | Capacitor, Run (Replaces: 61004637) | 14 |
|
$ 116.07 | ||||
| 7 | 69810-1 | Cap, Leveling Leg | 14 |
|
- | ||||
| 7 | 61002105 | Leg Assy., Leveling | 14 |
|
- | ||||
| 8 | 52656-2 | Plug, Compressor | 14 |
|
- | ||||
| 9 | WP489399 | Screw (Replaces: 61004378) | 14 |
|
$ 6.26 | ||||
| 9 | 61002811 | Condenser | 14 |
|
- | ||||
| 10 | 61001686 | Washer, Fan Blade | 14 |
|
- | ||||
| 11 | 61001941 | Shroud, Condenser | 14 |
|
- | ||||
| 12 | 61002033 | Grommet, Condenser Tubing | 14 |
|
- | ||||
| 13 | WPW10143759 | Drier (Replaces: 13900-1) | 14 |
|
Immediately | $ 27.70 | |||
| 14 | 65275-33 | Screw | 14 |
|
- | ||||
| 14 | 61002084 | Motor, Condenser Fan | 14 |
|
- | ||||
| 15 | WP12587601 | Blade, Condenser Fan (Replaces: 60683-1) | 14 |
|
$ 114.00 | ||||
| 16 | 61001955 | Pan, Drain | 14 |
|
- | ||||
| 16 | WP489478 | Screw (Replaces: 400017-1) | 14 |
|
$ 6.98 | ||||
| 17 | WP486692 | Clip, Fan Blade (Replaces: 19914) | 14 |
|
$ 7.04 | ||||
| 18 | 61001414 | Bracket, Fan Motor | 14 |
|
- | ||||
| 19 | 61004743 | Grommet, Bracket | 14 |
|
$ 5.51 | ||||
| 20 | 61002214 | Tube, Drain Trap | 14 |
|
- | ||||
| 21 | 65275-5 | Screw | 14 |
|
- | ||||
| 21 | WP33002917 | Screw (Replaces: 65275-1) | 14 |
|
Immediately | $ 6.90 | |||
| 21 | 61005116 | Cover, Compressor Compartment | 14 |
|
- | ||||
| 22 | WP67006715 | Screw (Replaces: 61002407) | 14 |
|
$ 6.47 | ||||
| 22 | 61005242 | Pan, Compressor Mtg. | 14 |
|
- | ||||
| 23 | 61004876 | Inlet, Power Cord | 14 |
|
- | ||||
| 24 | WP61003826 | Wheel (rear) (Replaces: 61003826) | 14 |
|
$ 6.71 | ||||
| 25 | 61002104 | Pin, Wheel | 14 |
|
$ 5.70 | ||||
| 26 | 61002680 | Kickplate W/clips (wht) | 14 |
|
$ 36.54 | ||||
| 27 | 61004874 | Cord, Power (europe) | 14 |
|
- | ||||
| 28 | 61004875 | Box, Inlet | 14 |
|
- | ||||
| 28 | 61004485 | Screw | 14 |
|
- | ||||
| 28 | WP489069 | Screw (Replaces: 65275-50) | 14 |
|
Immediately | $ 7.07 | |||
| 29 | 12001493 | Yoder Loop Heater Repair (230v | 14 |
|
- | ||||
| 30 | 61002135 | Manual, Use & Care | 14 |
|
- | ||||
| 31 | 16008421 | Manual, Service (crosley) | 14 |
|
- | ||||
| 31 | 16008248 | Manual, Service-no Refund | 14 |
|
- |
