Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 61004582 Tunnel, Air 11 Appelez-nous -
2 61002106 Cover, Evaporator 11 Appelez-nous -
2 WP489474 Screw   (Replaces: 61002429) 11 In-Stock Immediately $ 7.17

2 61001952 Plug Button, Evap. Cover 11 Appelez-nous -
3 61001967 Seal, Foam (ctr.) 11 Appelez-nous -
3 61004560 Seal, Evaporator Cover 11 Appelez-nous -
4 61004830 Tray, Drip 12 Appelez-nous -
4 61005117 Tray, Drip 11 Appelez-nous -
4 61004832 Barrier, Foil 12 Appelez-nous -
5 61001935 Blade, Evaporator Fan 11 Appelez-nous -
6 61001930 Bracket, Evaporator Fan 11 Appelez-nous -
6 WP489399 Screw   (Replaces: 61001885) 11 Special Order $ 6.26

7 61002107 Motor, Evaporator Fan 11 Appelez-nous -
8 WP61003071 Clip, Defrost Heater   (Replaces: 61003071) 11 Special Order $ 9.72

8 61004834 Clip, Defrost Heater 12 Appelez-nous -
9 61002108 Heater, Defrost 11 Appelez-nous -
10 61001956 Shield, Defrost Heater 11 Appelez-nous -
11 61004836 Support, Evaporator (rt) 12 Appelez-nous -
11 61004836 Support, Evaporator (rt) 11 Appelez-nous -
11 61004835 Support, Evaporator (lt) 12 Appelez-nous -
11 61004835 Support, Evaporator (lt) 11 Appelez-nous -
12 WP61005254 Thermostat, Defrost   (Replaces: 61004833) 12 In-Stock Immediately $ 103.09

12 WP61002992 Thermostat, Defrost   (Replaces: 61004831) 11 In-Stock Immediately $ 105.10

13 61002141 Shelf, Freezer 11 Appelez-nous -
14 12001396 Evap/heat Exch. Assy. 15 & 17` 11 Special Order $ 233.00

15 61002143 Support, Frz. Shelf (rear) 11 Appelez-nous -
15 61002142 Support, Frz. Shelf (frt) 11 Appelez-nous -
16 61002109 Cap, Fill Tube 11 Appelez-nous -
17 61005015 Plug Button, Ice Maker 11 Appelez-nous -
18 WP489399 Screw   (Replaces: 61001885) 11 Special Order $ 6.26

18 61002234 Retainer, Evaporator Fan 11 Appelez-nous -
19 61002235 Bushing, Evaporator Fan 11 Appelez-nous -
20 61002914 Wire Harness, Frz. 11 Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

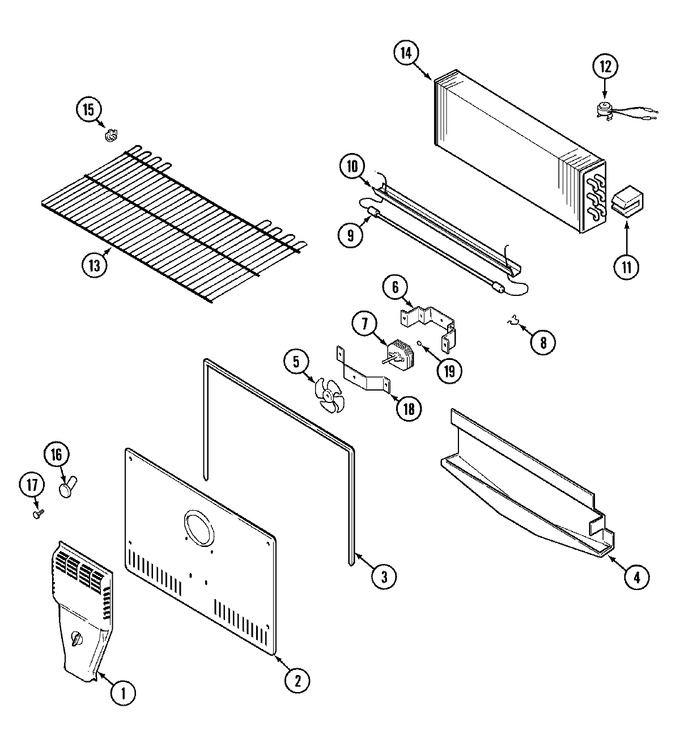

Diagram for GT1521NDFW
