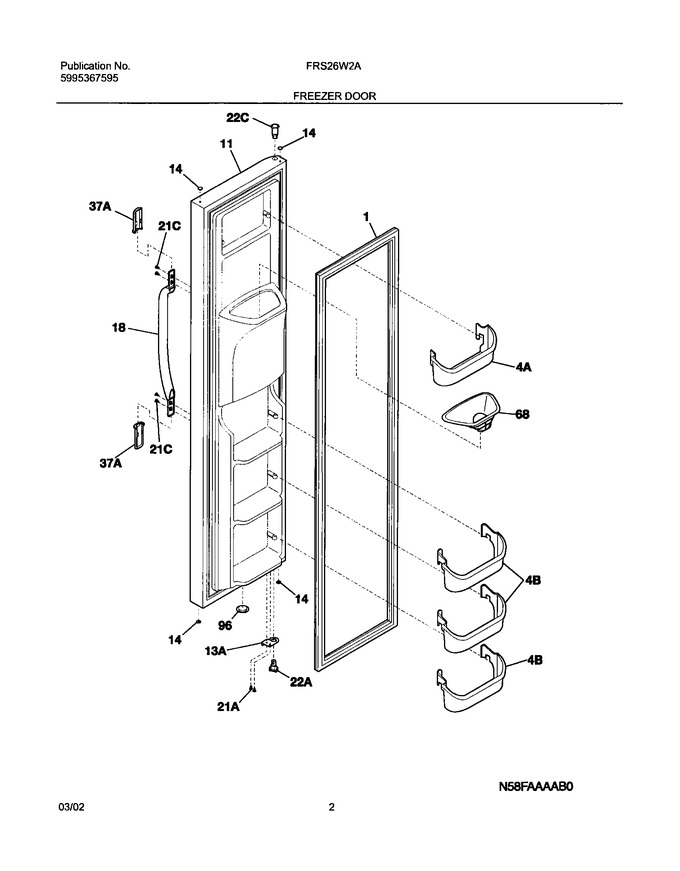

03 - Freezer Door


05 - Refrigerator Door


07 - Cabinet


09 - Shelves


11 - Controls


13 - System


15 - Ice & Water Dispenser


17 - Ice Container


19 - Ice Maker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	240451812		Door-frzr,bisque ,complete Assy		Appelez-nous	-
18	218762703		Handle-door,black				$ 67.04
68	240467701		Chute-ice		Appelez-nous	-
96	240345505		Plug,door Foam Hole ,white				$ 12.90
13A	5303918455		Door Stop,bisque,frzr   (Replaces: 240537104)				$ 142.04
21A	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
21C	218781101		Screw,pan Head ,8-18 X 0.625   (Replaces: 218781100)				$ 15.60
22A	242000501		Bearing-hinge,closer   (Replaces: 240328202)				$ 7.14
22C	240328402		Bearing-hinge,upper				$ 19.85
37A	215870636		Trim-handle,2.47`` ,black ,				$ 76.91
37A	218676004		Band-decorative,satin Aluminum ,				$ 57.60
4A	240334201		Bin-door,frzr-upper				$ 67.21
4B	240351601		Bin-door			Immediately	$ 58.73
F1	241786014		Gasket-frzr Door,white ,magnetic   (Replaces: 240390602)				$ 95.17
NI	240323201		Wiring Harness		Appelez-nous	-
NI	240545201		Connector-water,straight   (Replaces: 240352101)				$ 73.71
NI	5303918256		Dispenser Heater Kit				$ 474.16
