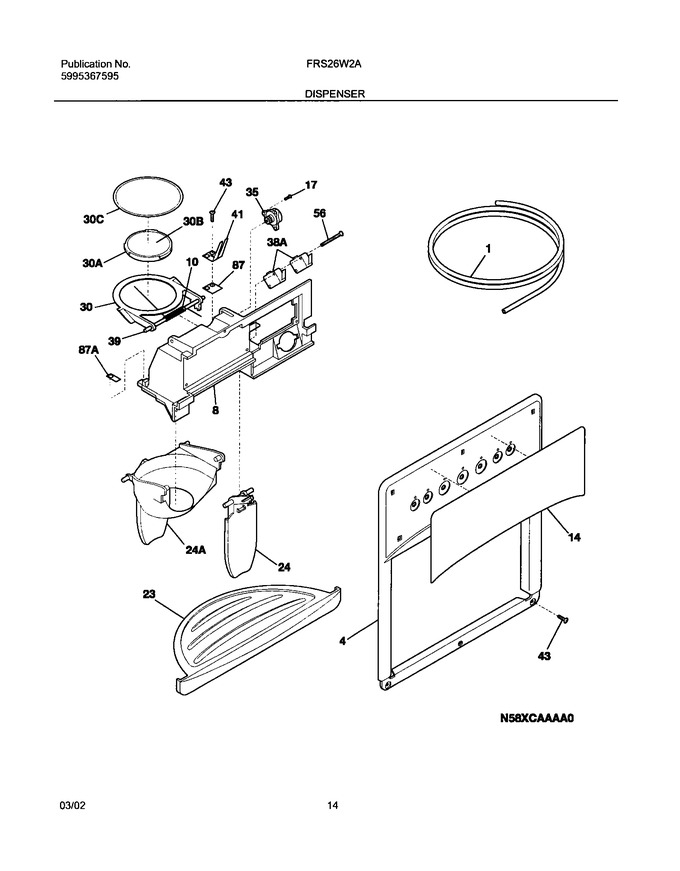

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	218976409		Tube-water			Immediately	$ 60.25
4	5304424550		Cover-module,black		Appelez-nous	-
8	5304424549		Module-dispenser		Appelez-nous	-
10	241688901		Spring-torsion   (Replaces: 5304421626)			Immediately	$ 21.27
14	240323917		Label-module Cover,black		Appelez-nous	-
17	241679801		Screw   (Replaces: 5304421619)				$ 14.18
23	241649003		Drip Tray,black   (Replaces: 240323603)				$ 61.66
24	241682003		Actuator-water,black   (Replaces: 5304422026)			Immediately	$ 55.63
30	241688401		Door Assy-ice Chute   (Replaces: 5304421628)				$ 49.62
35	241689301		Damper-rotary   (Replaces: 5304421620)				$ 70.52
39	241688801		Pin-hinge   (Replaces: 5304421627)				$ 43.24
41	241689001		Spring-actuator   (Replaces: 5304421829)				$ 21.97
43	5304453707		Screw-no.8-18 X 1/2,no.6 Hd Plask   (Replaces: 240363401)			Immediately	$ 15.92
56	241689201		Screw-micro Switch,pan Head   (Replaces: 5304421830)				$ 13.46
87	241688302		Bearing Plate   (Replaces: 5304421622)				$ 19.85
24A	241681903		Actuator-ice,black   (Replaces: 5304422025)			Immediately	$ 83.64
30A	241688501		Door Center   (Replaces: 5304421624)				$ 52.97
30B	241688601		Insulation-door   (Replaces: 5304421625)				$ 63.17
30C	241688701		Door Seal   (Replaces: 5304421629)				$ 40.46
38A	241689106		Switch-micro,single Pole ,double Throw   (Replaces: 5304421617)			Immediately	$ 8.60
87A	241688301		Bearing Plate   (Replaces: 5304421621)				$ 19.85
NI	218976901		Tube-water Inlet,inlet Valve ,			Immediately	$ 81.50
NI	5303918256		Dispenser Heater Kit				$ 474.16
