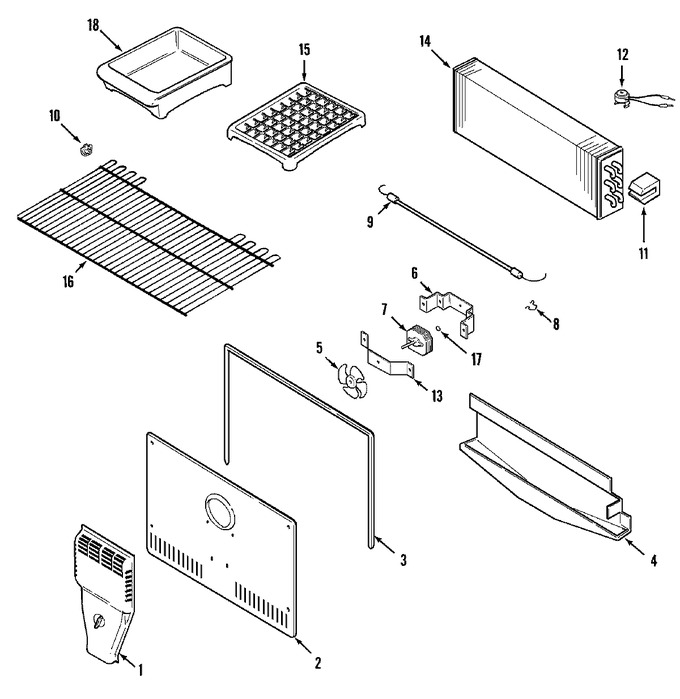

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	61005596		Tunnel, Air	12	Appelez-nous	-
2	61001952		Plug Button, Evap. Cover	12	Appelez-nous	-
2	61002233		Cover, Evaporator	12	Appelez-nous	-
2	WP489474		Screw   (Replaces: 61006122)	12		Immediately	$ 7.17
3	61005920		Seal, Foam (ctr)	12	Appelez-nous	-
3	61004583		Seal, Evaporator Cover	12	Appelez-nous	-
4	61004856		Tray, Drip	12	Appelez-nous	-
4	61004832		Barrier, Foil	12	Appelez-nous	-
5	61001935		Blade, Evaporator Fan	12	Appelez-nous	-
6	WP489399		Screw   (Replaces: 61005240)	12			$ 6.26
6	61001930		Bracket, Evaporator Fan	12	Appelez-nous	-
7	61005387		Motor, Evaporator Fan	12	Appelez-nous	-
8	61004834		Clip, Defrost Heater	12	Appelez-nous	-
9	61005234		Heater, Defrost	12	Appelez-nous	-
10	61002142		Support, Frz. Shelf (frt)	12	Appelez-nous	-
10	61002143		Support, Frz. Shelf (rear)	12	Appelez-nous	-
11	61004836		Support, Evaporator (rt)	12	Appelez-nous	-
11	61004835		Support, Evaporator (lt)	12	Appelez-nous	-
12	WP61005254		Thermostat, Defrost   (Replaces: 61005254)	12		Immediately	$ 103.09
13	WP489399		Screw   (Replaces: 61005240)	12			$ 6.26
13	61002234		Retainer, Evaporator Fan	12	Appelez-nous	-
14	12001396		Evap/heat Exch. Assy. 15 & 17`	12			$ 233.00
15	WP61002140		Tray, Ice   (Replaces: 61002140)	12			$ 18.23
16	61002141		Shelf, Freezer	12	Appelez-nous	-
17	61002235		Bushing, Evaporator Fan	12	Appelez-nous	-
18	61002177		Pan, Ice	12	Appelez-nous	-
19	61002694		Wire Harness, Freezer	12	Appelez-nous	-
