Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 61001950 Shelf 12 Appelez-nous -
2 61002171 Shelf, Crisper 12 Appelez-nous -
3 67764-1 Support, Crisper Shelf 12 Special Order $ 8.05

3 WP489478 Screw   (Replaces: 400017-1) 12 Special Order $ 6.98

4 61002131 Glass, Crisper Shelf 12 Special Order $ 85.83

5 61004950 Rail, Crisper Support 12 Appelez-nous -
6 61002172 Pan, Crisper 12 Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

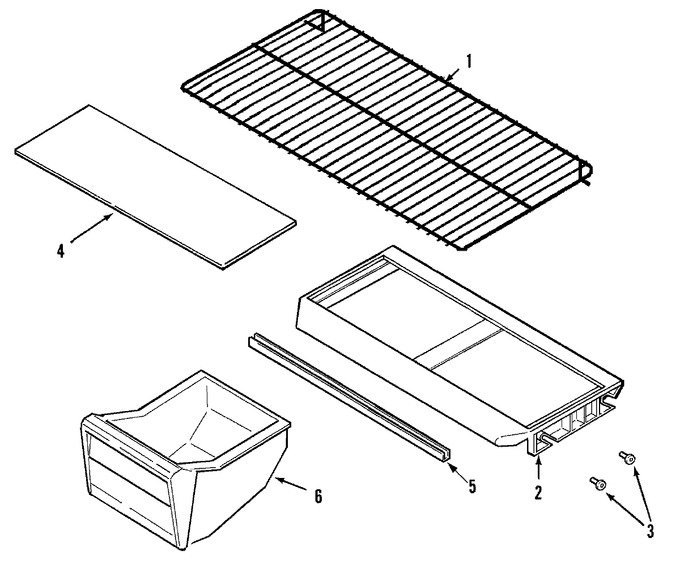

Diagram for GT1723NEHW
