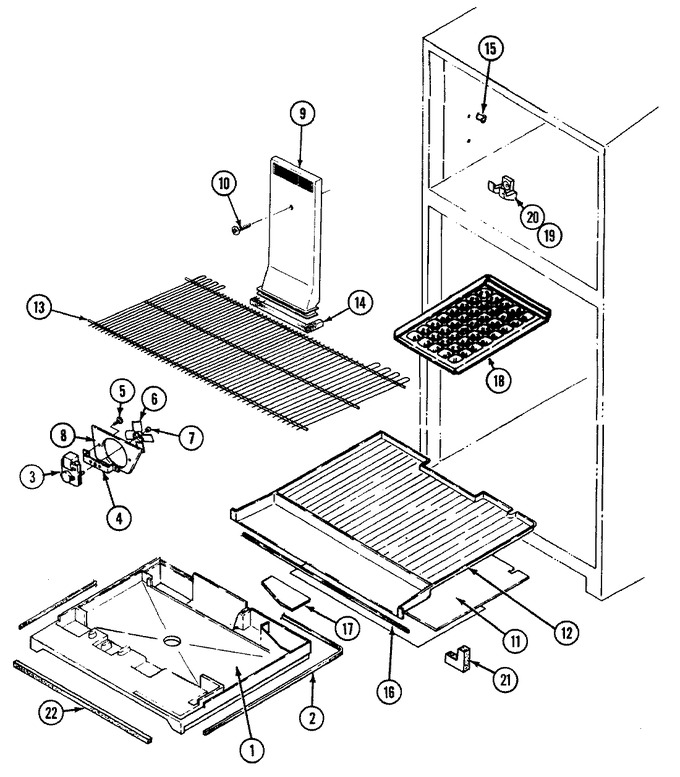

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 69401-1 | Tray, Styrofoam Mullion | 10 |
|
- | ||||
| 2 | 69414-1 | Seal, Mullion Tray | 10 |
|
- | ||||
| 3 | 69106-2 | Motor, Evaporator Fan | 11 |
|
$ 95.45 | ||||
| 3 | WP61004888 | Motor, Evaporator Fan (Replaces: 69106-1) | 10 |
|
Immediately | $ 104.99 | |||
| 3 | 406062-1 | Screw | 10 |
|
- | ||||
| 4 | 64856-1 | Bracket, Fan Motor | 10 |
|
- | ||||
| 5 | W11233072 | Screw (Replaces: 400015-36) | 10 |
|
Immediately | $ 12.62 | |||
| 6 | 69107-1 | Blade, Evaporator Fan | 10 |
|
- | ||||
| 7 | 420092-900 | Washer, Spring | 10 |
|
- | ||||
| 8 | 60608-2 | Orifice, Fan Blade | 10 |
|
- | ||||
| 9 | 68592-2 | Tunnel, Air | 10 |
|
- | ||||
| 10 | W11233072 | Screw (Replaces: 400015-31) | 10 |
|
Immediately | $ 12.62 | |||
| 11 | 66403-2 | Cover, Evaporator | 10 |
|
- | ||||
| 12 | 69397-1 | Bottom, Frz. | 10 |
|
- | ||||
| 13 | 60438-31 | Shelf | 10 |
|
- | ||||
| 14 | 66325-34 | Seal, Air Tunnel----na | 10 |
|
- | ||||
| 15 | 60313-1 | Cup, Shelf | 10 |
|
- | ||||
| 16 | 69413-1 | Magnet | 10 |
|
- | ||||
| 17 | 66480-5 | Cover, Plenum | 10 |
|
- | ||||
| 18 | WP841180A | Tray, Ice (Replaces: 59281-2) | 10 |
|
Immediately | $ 41.00 | |||
| 19 | 400019-1 | Screw | 10 |
|
- | ||||
| 20 | WP489069 | Screw (Replaces: 65275-50) | 10 |
|
Immediately | $ 7.07 | |||
| 20 | 66101-1 | Stud, Shelf | 10 |
|
- | ||||
| 21 | 66325-10 | Seal, Frost Chest | 10 |
|
- | ||||
| 22 | 69562-2 | Seal, Mullion Tray (front) | 10 |
|
- |
