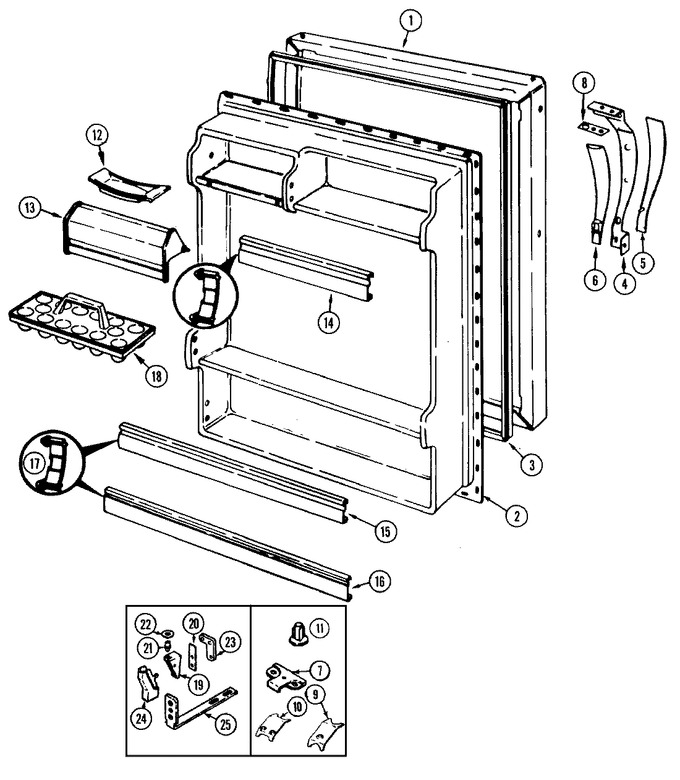

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	72349-5-AM		Panel, Outer Door	10	Appelez-nous	-
2	69445-1		Liner, F.f. Door	10	Appelez-nous	-
2	65275-5		Screw	10	Appelez-nous	-
3	61001520		Gasket, F.f. Door	10	Appelez-nous	-
4	65275-57		Screw	10	Appelez-nous	-
4	69300-2		Handle, Door	10	Appelez-nous	-
5	68959-2		Insert	10	Appelez-nous	-
6	65275-53		Screw	10	Appelez-nous	-
6	60445-4		Insert, Handle (back)	10	Appelez-nous	-
7	69256-2		Stop, Door	10	Appelez-nous	-
7	65275-48		Screw	10	Appelez-nous	-
8	69835-1		Shim, Handle	10	Appelez-nous	-
8	69301-1		Shim, Handle	10	Appelez-nous	-
9	56209-3		Clip, Stop Screw	10	Appelez-nous	-
10	60123-2		Clip, Stop Screw	10	Appelez-nous	-
11	55782-6		Plug Button (almond)	10	Appelez-nous	-
12	29936-2		Tray, Butter	10	Appelez-nous	-
13	69058-2		Door, Dairy	10	Appelez-nous	-
14	WP61003045		Trim, Door Shelf   (Replaces: 65151-344)	10			$ 129.55
15	WP61003045		Trim, Door Shelf   (Replaces: 65151-95)	10			$ 129.55
16	WP61003045		Trim, Door Shelf   (Replaces: 65151-348)	10			$ 129.55
17	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)	10			$ 9.39
18	60066-1		Tray, Egg	10	Appelez-nous	-
19	69516-4		Hinge, Lower (zinc)	10	Appelez-nous	-
19	65275-51		Screw, Lower Hinge	10	Appelez-nous	-
20	69510-1		Shim, Lower Hinge	10	Appelez-nous	-
21	69845-1		Pin, Lower Hinge	10			$ 44.55
22	67483-3		Washer, Lower Hinge   (Replaces: 67483-2)	10		Immediately	$ 45.86
23	67874-1		Tapping Plate, Lower Hinge	10	Appelez-nous	-
23	403100-1		Screw	10	Appelez-nous	-
24	68978-3		Cover, Lower Hinge (alm)	10	Appelez-nous	-
25	69511-1		Tapping Plate, Lower Hinge	10	Appelez-nous	-
