SELECT A DIAGRAM

Diagram for 01 - Chest Of Drawers
01 - Chest Of Drawers

Diagram for 02 - Freezer Compartment
02 - Freezer Compartment

Diagram for 03 - Freezer Door
03 - Freezer Door

Diagram for 04 - Fresh Food Compartment
04 - Fresh Food Compartment

Diagram for 05 - Fresh Food Door
05 - Fresh Food Door

Diagram for 06 - Optional Ice Maker Kit-ice-25
06 - Optional Ice Maker Kit-ice-25

Diagram for 07 - Shelves & Accessories
07 - Shelves & Accessories

Diagram for 08 - Unit Compartment & System
08 - Unit Compartment & System

Diagram for 09 - Wiring Information
09 - Wiring Information


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 72345-3-WW Panel, Frz. Door (wht) 10 Appelez-nous -
2 69470-1 Liner, Frz. Door 10 Appelez-nous -
2 65275-5 Screw 10 Appelez-nous -
3 70025-5 Gasket, Frz. Door (wht) 10 Special Order $ 142.50

4 65275-57 Screw 10 Appelez-nous -
4 69300-1 Handle, Door 10 Appelez-nous -
5 69480-2 Plug Button, Handle Hole (wht) 10 Appelez-nous -
6 69301-1 Shim, Handle 10 Appelez-nous -
6 69835-1 Shim, Handle 10 Appelez-nous -
7 68036-3 Insert (wht) 10 Appelez-nous -
8 67634-2 Plug Button, Hinge Cup (wht) 10 Appelez-nous -
9 54233-1 Washer 10 Special Order $ 7.71

10 67483-6 Washer 10 Appelez-nous -
11 WP61003045 Trim, Door Shelf   (Replaces: 65151-123) 10 Special Order $ 129.55

12 WP61003045 Trim, Door Shelf   (Replaces: 65151-364) 10 Special Order $ 129.55

13 WP65245-1 Retainer, Shelf Trim   (Replaces: 65245-1) 10 Special Order $ 9.39

14 56144-14 Plug Button, Upper Hinge (wht) 10 Appelez-nous -
15 53709-24 Hinge, Upper 10 Appelez-nous -
15 WP3-24838-048 Screw   (Replaces: 65275-52) 10 Special Order $ 7.00

16 65031-1 Shim, Upper Hinge 10 Appelez-nous -
17 68048-7 Insert, Vinyl 10 Appelez-nous -
18 65275-62 Screw 10 Appelez-nous -
18 69514-2 Hinge, Center 10 Appelez-nous -
19 69515-1 Shim, Center Hinge 10 Appelez-nous -
20 69419-1 Tapping Plate, Center Hinge 10 Appelez-nous -
20 65275-61 Screw 10 Appelez-nous -
21 69517-2 Pin, Center Hinge 10 Appelez-nous -
22 60580-5 Insert 10 Appelez-nous -
22 65275-53 Screw 10 Appelez-nous -
23 70121-4 Cover, Upper Hinge (wht) 10 Appelez-nous -
24 69256-2 Stop, Door 10 Appelez-nous -
24 65275-48 Screw 10 Appelez-nous -
25 29356-1 Retainer, Nameplate 10 Appelez-nous -
26 60453-45 Trim, Frz. Door (wht) 10 Appelez-nous -
26 65275-57 Screw 10 Appelez-nous -

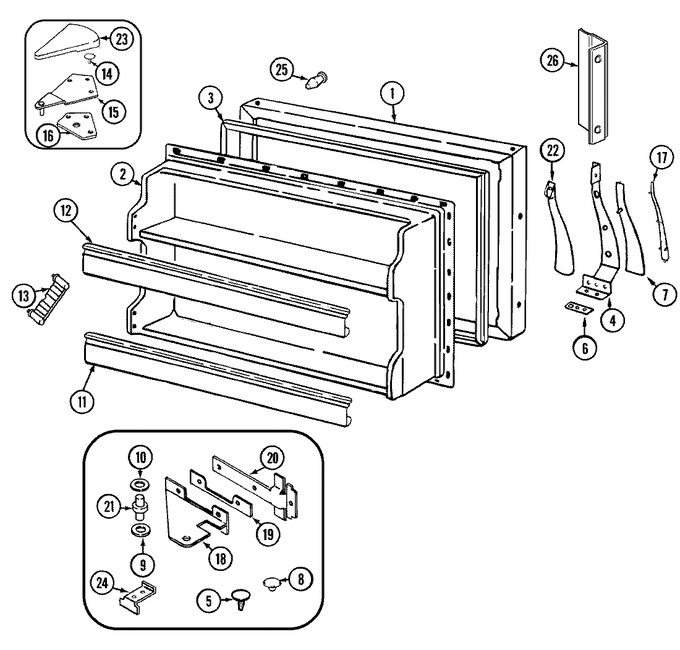

    View Diagram in Separate Window     Print Icon   Print Part List
