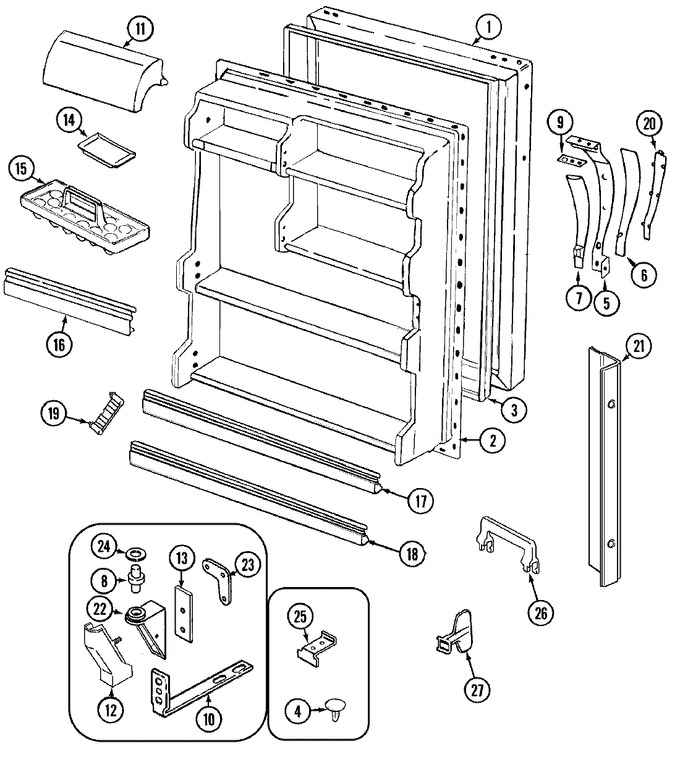

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 72349-1-WW | Panel, F.f. Door (wht) | 10 |
|
- | ||||
| 2 | 69453-1 | Liner, F.f. Door | 10 |
|
- | ||||
| 2 | 65275-5 | Screw | 10 |
|
- | ||||
| 3 | 70025-6 | Gasket, F.f. Door (wht) | 10 |
|
$ 155.30 | ||||
| 4 | 69480-2 | Plug Button, Handle Hole (wht) | 10 |
|
- | ||||
| 5 | 69300-2 | Handle, Door | 10 |
|
- | ||||
| 5 | 65275-57 | Screw | 10 |
|
- | ||||
| 6 | 68036-3 | Insert (wht) | 10 |
|
- | ||||
| 7 | 60580-5 | Insert | 10 |
|
- | ||||
| 7 | 65275-53 | Screw | 10 |
|
- | ||||
| 8 | 69845-1 | Pin, Lower Hinge | 10 |
|
$ 44.55 | ||||
| 9 | 69301-1 | Shim, Handle | 10 |
|
- | ||||
| 9 | 68935-1 | Clip | 10 |
|
- | ||||
| 10 | 414012-1 | Screw | 10 |
|
- | ||||
| 10 | 65275-66 | Screw (no.10 X 1/2``) | 10 |
|
- | ||||
| 10 | 69511-1 | Tapping Plate, Lower Hinge | 10 |
|
- | ||||
| 11 | 66184-365 | Door, Dairy | 10 |
|
- | ||||
| 11 | 66184-366 | Door, Dairy | 10 |
|
- | ||||
| 12 | 68978-4 | Cover, Lower Hinge (wht) | 10 |
|
- | ||||
| 13 | 69510-1 | Shim, Lower Hinge | 10 |
|
- | ||||
| 14 | 29936-2 | Tray, Butter | 10 |
|
- | ||||
| 15 | 60066-1 | Tray, Egg | 10 |
|
- | ||||
| 16 | WP61003045 | Trim, Door Shelf (Replaces: 65151-361) | 10 |
|
$ 129.55 | ||||
| 17 | WP61003045 | Trim, Door Shelf (Replaces: 65151-134) | 10 |
|
$ 129.55 | ||||
| 18 | WP61003045 | Trim, Door Shelf (Replaces: 65151-336) | 10 |
|
$ 129.55 | ||||
| 19 | WP65245-1 | Retainer, Shelf Trim (Replaces: 65245-1) | 10 |
|
$ 9.39 | ||||
| 20 | 68048-7 | Insert, Vinyl | 10 |
|
- | ||||
| 21 | 60453-44 | Trim, F.f. Door (wht) | 10 |
|
- | ||||
| 21 | 65275-57 | Screw | 10 |
|
- | ||||
| 22 | 65275-51 | Screw, Lower Hinge | 10 |
|
- | ||||
| 22 | 69516-4 | Hinge, Lower (zinc) | 10 |
|
- | ||||
| 23 | 65275-59 | Screw | 10 |
|
- | ||||
| 23 | 67874-1 | Tapping Plate, Lower Hinge | 10 |
|
- | ||||
| 24 | 67483-3 | Washer, Lower Hinge (Replaces: 67483-2) | 10 |
|
Immediately | $ 45.86 | |||
| 25 | 69256-2 | Stop, Door | 10 |
|
- | ||||
| 25 | 65275-48 | Screw | 10 |
|
- | ||||
| 26 | 69794-1 | Retainer, Bottle | 10 |
|
- | ||||
| 27 | 64097-11 | Organizer, Shelf | 10 |
|
- |
