SELECT A DIAGRAM

02 - Top And Cabinet, Lit/optional


03 - Rear Panel


04 - Agitator, Basket And Tub


05 - Miscellaneous


06 - Brake, Clutch, Gearcase, Motor And Pump


07 - Machine Base

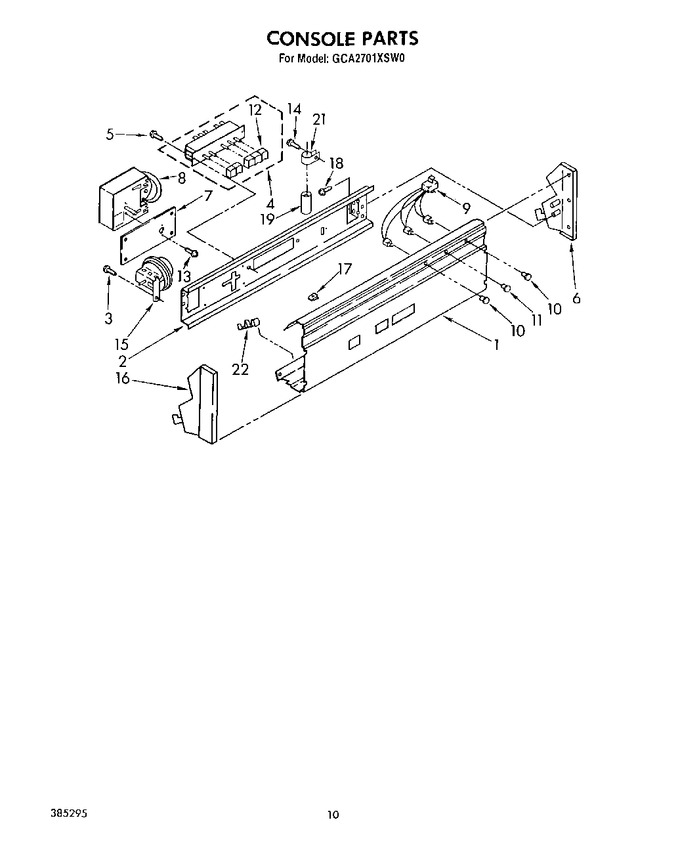

08 - Console


09 - Wiring Harness


10 - Brake And Drive Tube


11 - Gearcase


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3348575		Panel, Console		Appelez-nous	-
2	3348576		Bracket, Control		Appelez-nous	-
3	WP90767		Screw, 8a X 3/8   (Replaces: 90767)			Immediately	$ 7.04
4	W10330142		Switch, Cycle Selector   (Replaces: 389138)				$ 231.35
5	WP965173		Screw, 8-18 X 3/8   (Replaces: 9424101)			Immediately	$ 9.65
6	63795		Cap, End. (r.h.)				$ 14.10
7	3348573		Bracket, Timer		Appelez-nous	-
8	3348443		Timer		Appelez-nous	-
9	W10858647		Lights, Indicator   (Replaces: 3348674)				$ 35.18
10	WP3348109		Lens, Amber (2)   (Replaces: 3348109)			Immediately	$ 11.26
11	WP3348110		Lens, Yellow (1)   (Replaces: 3348110)				$ 6.96
12	3348587		Pushbutton (3)				$ 12.40
13	WP356418		Screw (2)   (Replaces: 96435)				$ 7.13
14	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.07
15	64102		Switch, Water Level			Immediately	$ 3.01
16	63789		Cap, End (l.h.)		Appelez-nous	-
17	689559		Nut, Push-in (2)		Appelez-nous	-
18	355326		Screw, End Cap To Bracket (4)		Appelez-nous	-
19	WP8572717		Capacitor, Motor Start (mfd 189) (120 Volts)   (Replaces: 357021)			Immediately	$ 72.13
21	357030		Clamp, Capacitor				$ 18.98
22	W10113937		Clip, Grounding   (Replaces: 357572)				$ 9.75

    View Diagram in Separate Window       Print Part List
