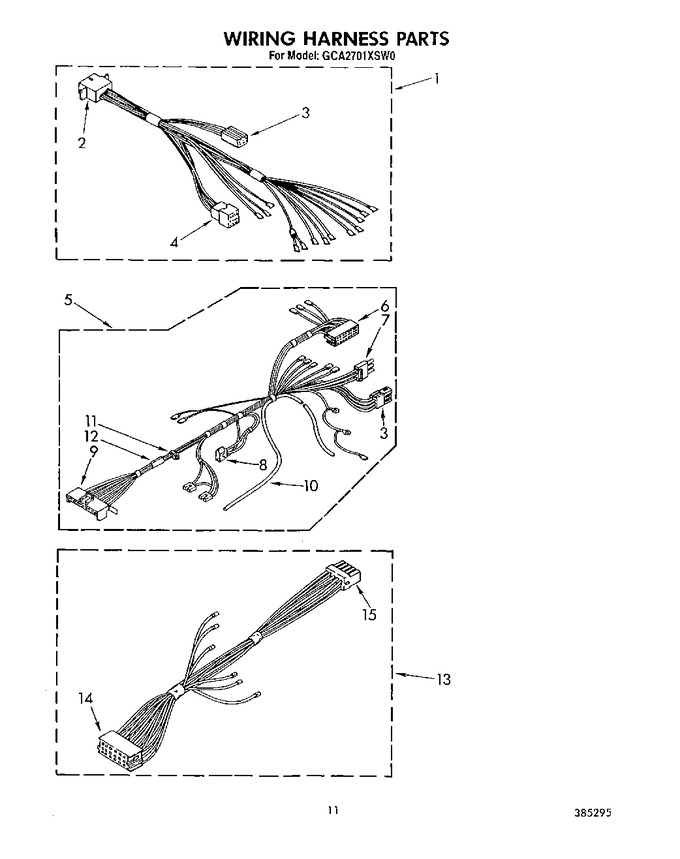

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3348448		Harness, Console		Appelez-nous	-
2	96894		Plug, Terminal (15 Way) Uses Terminal 94614)		Appelez-nous	-
3	352457		Plug, Terminal (6 Way) Uses Terminal 94613)		Appelez-nous	-
4	94697		Cap, Terminal 12 Way (uses Terminal 94613		Appelez-nous	-
5	3349211		Harness And Pressure Switch Hose		Appelez-nous	-
6	W10876590		Plug, Terminal (12 Way) Uses Terminal 94614   (Replaces: 352089)				$ 11.48
7	352457		Receptacle, Terminal (3 Way) Lid Switch		Appelez-nous	-
8	353424		Plug, Terminal (3-way) (power Cord)				$ 18.95
9	WP62505		Block, Disconnect (motor)   (Replaces: 62505)				$ 21.35
10	WP353244		Hose, Pressure Switch   (Replaces: 3349218)			Immediately	$ 53.94
11	62749		Clip, Harness				$ 18.77
12	63523		Protector, Harness				$ 169.95
13	3348449		Harness, Timer		Appelez-nous	-
14	W10876590		Block, Disconnect (uses Terminal 352088)   (Replaces: 352089)				$ 11.48
15	334474		Block, Disconnect (uses Terminal 94613)		Appelez-nous	-
