Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 72345-3-AM Panel, Frz. Door (alm) 10 Appelez-nous -
2 65275-5 Screw 10 Appelez-nous -
2 69470-1 Liner, Frz. Door 10 Appelez-nous -
3 70025-5 Gasket, Frz. Door (wht) 10 Special Order $ 142.50

4 69300-1 Handle, Door 10 Appelez-nous -
4 65275-57 Screw 10 Appelez-nous -
5 69480-4 Plug Button (alm) 10 Appelez-nous -
6 69835-1 Shim, Handle 10 Appelez-nous -
6 69301-1 Shim, Handle 10 Appelez-nous -
7 68036-4 Insert (alm) 10 Appelez-nous -
8 67634-3 Plug Button, Hinge Cup (alm) 10 Appelez-nous -
9 54233-1 Washer 10 Special Order $ 7.71

10 67483-6 Washer 10 Appelez-nous -
11 WP61003045 Trim, Door   (Replaces: 68832-117) 10 Special Order $ 129.55

12 68832-116 Trim, Shelf (24 1/2``) 10 Appelez-nous -
13 WP65245-1 Retainer, Shelf Trim   (Replaces: 65245-1) 10 Special Order $ 9.39

14 56144-9 Plug Button, Hinge Screw (alm) 10 Appelez-nous -
15 53709-24 Hinge, Upper 10 Appelez-nous -
15 WP3-24838-048 Screw   (Replaces: 65275-52) 10 Special Order $ 7.00

16 65031-1 Shim, Upper Hinge 10 Appelez-nous -
17 68048-5 Insert, Vinyl 10 Appelez-nous -
18 69514-2 Hinge, Center 10 Appelez-nous -
18 65275-62 Screw 10 Appelez-nous -
19 69515-1 Shim, Center Hinge 10 Appelez-nous -
20 65275-61 Screw 10 Appelez-nous -
20 69419-1 Tapping Plate, Center Hinge 10 Appelez-nous -
21 69517-1 Pin, Center Hinge 10 Appelez-nous -
22 65275-53 Screw 10 Appelez-nous -
22 60580-6 Insert 10 Appelez-nous -
23 70121-3 Cover, Upper Hinge (alm) 10 Appelez-nous -
24 65275-48 Screw 10 Appelez-nous -
24 69256-2 Stop, Door 10 Appelez-nous -
25 29356-1 Retainer, Nameplate 10 Appelez-nous -
26 60453-33 Trim, Frz. Door (alm) 10 Appelez-nous -
26 65275-57 Screw 10 Appelez-nous -
27 64097-11 Organizer, Shelf 10 Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

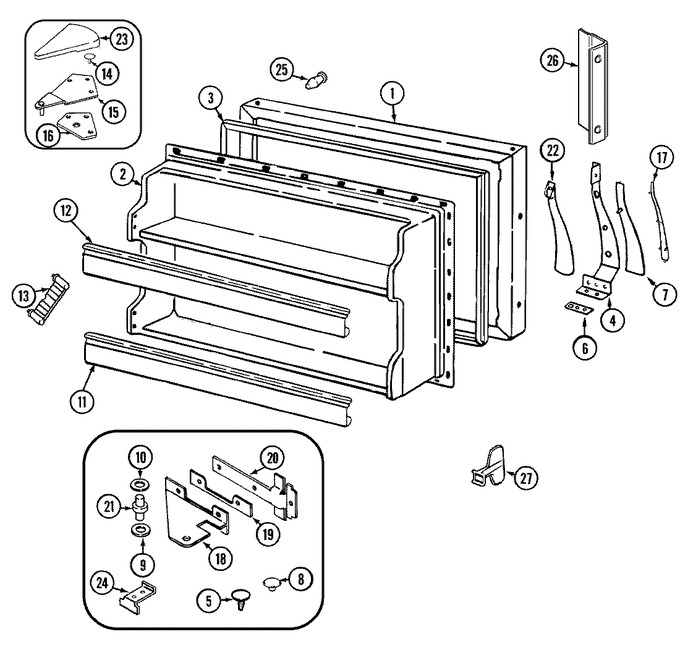

Diagram for GT21X93A (BOM: DF84A)
