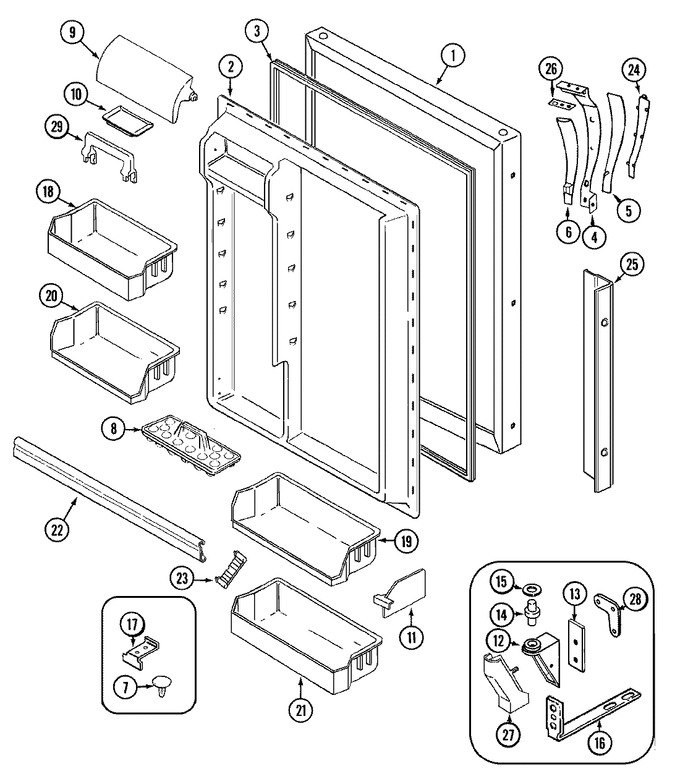

GT21X93A (BOM: DF84A) | TransGlobal : Appliance Model Lookup

Diagram #	Part Number	Description	Series	Availability	Ships	Price
1	72342-9-AM	Panel, F.f. Door (alm)	10	Appelez-nous	-
2	65275-5	Screw	10	Appelez-nous	-
2	69456-1	Liner	10	Appelez-nous	-
3	70025-6	Gasket, F.f. Door (wht)	10			$ 155.30
4	69300-2	Handle, Door	10	Appelez-nous	-
4	65275-57	Screw	10	Appelez-nous	-
5	68036-4	Insert (alm)	10	Appelez-nous	-
6	65275-53	Screw	10	Appelez-nous	-
6	60580-6	Insert	10	Appelez-nous	-
7	69480-4	Plug Button (alm)	10	Appelez-nous	-
8	60066-1	Tray, Egg	10	Appelez-nous	-
9	69058-2	Door, Dairy	10	Appelez-nous	-
10	29936-2	Tray, Butter	10	Appelez-nous	-
11	69759-2	Organizer	10	Appelez-nous	-
12	65275-51	Screw, Lower Hinge	10	Appelez-nous	-
12	69516-4	Hinge, Lower (zinc)	10	Appelez-nous	-
13	69510-1	Shim, Lower Hinge	10	Appelez-nous	-
14	69845-1	Pin, Lower Hinge	10			$ 44.55
15	67483-3	Washer, Lower Hinge (Replaces: 67483-2)	10		Immediately	$ 45.86
16	69511-1	Tapping Plate, Lower Hinge	10	Appelez-nous	-
16	65275-66	Screw (no.10 X 1/2``)	10	Appelez-nous	-
16	414012-1	Screw	10	Appelez-nous	-
17	69256-2	Stop, Door	10	Appelez-nous	-
18	69872-7	Shelf, Pick-off	10	Appelez-nous	-
19	69872-8	Shelf, Pick-off	10	Appelez-nous	-
20	69872-9	Shelf, Pick-off	10	Appelez-nous	-
21	69872-21	Shelf, Pick-off	10	Appelez-nous	-
22	WP61003045	Trim, Door (Replaces: 68832-118)	10			$ 129.55
23	WP65245-1	Retainer, Shelf Trim (Replaces: 65245-1)	10			$ 9.39
24	68048-5	Insert, Vinyl	10	Appelez-nous	-
25	60453-32	Trim, F.f. Door (alm)	10	Appelez-nous	-
25	65275-57	Screw	10	Appelez-nous	-
26	69301-1	Shim, Handle	10	Appelez-nous	-
26	69835-1	Shim, Handle	10	Appelez-nous	-
27	68978-3	Cover, Lower Hinge (alm)	10	Appelez-nous	-
28	65275-59	Screw	10	Appelez-nous	-
28	67874-1	Tapping Plate, Lower Hinge	10	Appelez-nous	-
29	69794-1	Retainer, Bottle	10	Appelez-nous	-
