Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 341776 Clip, Toe Panel Appelez-nous -
2 690236 Wire, Ground (motor) Appelez-nous -
3 WP681414 Screw 10-32 X 1/2   (Replaces: 690989) In-Stock Immediately $ 7.07

5 688412 Clip, Harness Retainer Appelez-nous -
6 WP681414 Screw, 10-16 X 1/2   (Replaces: 687128) In-Stock Immediately $ 7.07

7 WP681414 Screw,10-16 X 1/2   (Replaces: 343641) In-Stock Immediately $ 7.07

9 WP489069 Screw, Hex Washer Head   (Replaces: 693994) In-Stock Immediately $ 7.07

15 W11736322 Cover, Block   (Replaces: 690893) Appelez-nous -
16 WP8066217 Hinge, Top (2)   (Replaces: 238088) Special Order $ 7.04

17 WP691581 Lever, Door Switch   (Replaces: 295998) In-Stock Immediately $ 7.28

18 347736 Panel, Rear Appelez-nous -
19 341029 Clamp, Pipe (rear) Appelez-nous -
20 356837 Locator, Top (1) Appelez-nous -
20 98669 Locator, Top (2) Special Order $ 12.03

21 WP98234 Clip, Ground (2)   (Replaces: 98234) In-Stock Immediately $ 10.25

22 279264 Seal & Bearing Assembly   (Replaces: 349462) In-Stock Immediately $ 67.07

23 694670 Burner Assembly (60 Hz.) (refer To Pages 8 & 9 For Further Breakdown) Appelez-nous -
24 693980 Front Panel Assembly (white) Appelez-nous -
24 693983 Front Panel Assembly (new Avocado) Appelez-nous -
24 693981 Front Panel Assembly (almond) Appelez-nous -
24 693984 Front Panel Assembly (golden Harvest) Appelez-nous -
25 49621 Foot, Plastic (4)   (Replaces: 688222) In-Stock Immediately $ 7.70

26 237035 Panel, Toe (white) Appelez-nous -
26 689540 Panel, Toe (new Avocado) Appelez-nous -
26 689539 Panel, Toe (golden Harvest) Appelez-nous -
26 689537 Panel, Toe (almond) Appelez-nous -
27 696232 Clip, Toe Panel (2) Appelez-nous -
28 690851 Cabinet (golden Harvest) Appelez-nous -
28 690848 Cabinet (almond) Appelez-nous -
28 690847 Cabinet (white) Appelez-nous -
28 690850 Cabinet (new Avocado) Appelez-nous -
29 WP98129 Screw, 6-20 X 7/8 (2)   (Replaces: 98129) Special Order $ 6.80

30 W10820036 Switch, Door   (Replaces: 347207) In-Stock Immediately $ 27.45

31 WP90767 Screw   (Replaces: 90767) In-Stock Immediately $ 7.04

32 279311 Ignitor   (Replaces: 660991) In-Stock Immediately $ 71.01

32 279311 Ignitor (alt.)   (Replaces: 686590) In-Stock Immediately $ 71.01

33 WP18776 Lock, Front Top (2)   (Replaces: 18776) In-Stock Immediately $ 11.41

34 279220 Clip, Felt Pad (2)   (Replaces: 685203) Special Order $ 18.59

35 WPW10366705 Screw & Washer   (Replaces: 686953) Special Order $ 6.75

36 WP297092 Clip, Hinge (2)   (Replaces: 297092) In-Stock Immediately $ 7.42

37 279570 Catch, Door Assembly   (Replaces: 690081) In-Stock Immediately $ 8.00

38 279827 Motor Assembly 60 Hz.   (Replaces: 695075) In-Stock Immediately $ 172.76

39 WP348780 Base, Motor   (Replaces: 348780) In-Stock Immediately $ 109.41

40 341241 Belt, Drive   (Replaces: 660997) In-Stock Immediately $ 16.34

41 3400500 Bolt, 5/16-18 X 3/4   (Replaces: 172455) In-Stock Immediately $ 12.03

42 279923 Valve, Gas (complete) 60 Hz.   (Replaces: 694054) In-Stock Immediately $ 257.43

43 695885 Clamp, Pipe (front) Appelez-nous -
44 WP691366 Idler & Pulley   (Replaces: 691366) In-Stock Immediately $ 20.22

46 WP660658 Clip, Motor (2) (alt.)   (Replaces: 343481) Special Order $ 7.05

46 WP660658 Clip, Motor (2)   (Replaces: 660658) Special Order $ 7.05

46 WP660658 Clip, Motor (2) (alt.)   (Replaces: 685441) Special Order $ 7.05

48 WP8066184 Pulley, 60 Hz.   (Replaces: 694871) In-Stock Immediately $ 45.92

49 279827 Switch, Motor Start   (Replaces: 337351) In-Stock Immediately $ 172.76

50 WP90406 Nut, Cage   (Replaces: 90406) Special Order $ 7.33

51 689791 Screw, Hinge (6) Appelez-nous -
52 W11613302 Seal, Door   (Replaces: 685763) Special Order $ 48.27

54 279570 Strike, Door   (Replaces: 696144) In-Stock Immediately $ 8.00

58 WP348023 Hinge & Pin Assembly (2)   (Replaces: 348023) Special Order $ 7.58

60 WP694091 Screw, Door (8)   (Replaces: 694091) Special Order $ 6.47

61 280077 Door, Rear (new Avocado)   (Replaces: 689276) Special Order $ 177.82

61 280077 Door, Rear (almond)   (Replaces: 689274) Special Order $ 177.82

61 280077 Door, Rear (white)   (Replaces: 348201) Special Order $ 177.82

61 280077 Door, Rear (golden Harvest)   (Replaces: 689277) Special Order $ 177.82

63 689314 Door, Front (almond) Appelez-nous -
63 WP348205 Door, Front (white)   (Replaces: 348205) In-Stock Immediately $ 132.65

63 689318 Door, Front (new Avocado) Appelez-nous -
63 689319 Door Front (golden Harvest) Appelez-nous -
64 689584 Handle, Door (golden Harvest) Appelez-nous -
64 WP686711 Handle, Door (white)   (Replaces: 686715) In-Stock Immediately $ 7.16

64 689583 Handle, Door (new Avocado) Appelez-nous -
64 689306 Handle, Door (almond) Appelez-nous -
67 343826 Screw, Burner Mounting Appelez-nous -
68 WP98997 Clip, Harness   (Replaces: 98997) Special Order $ 9.98

69 WP18776 Lock, Front Top (2)   (Replaces: 353145) In-Stock Immediately $ 11.41

70 688074 Bracket, Top Lock Appelez-nous -
71 354730 Bolt, 5/16-18 X 2-3/4 Appelez-nous -
72 90984 Nut, 5/16 Appelez-nous -
87 356674 Wedge, Cone Special Order $ 33.19

90 427190 Screw, 1/4-20 X 7/8 Appelez-nous -
91 WP487939 Nut   (Replaces: 271172) Special Order $ 6.95

92 90984 Nut, 5/16-18 Appelez-nous -
94 688021 Bracket, Front Top Lock Appelez-nous -
98 W11222083 Cord, Power   (Replaces: 344020) Special Order $ 108.53

99 22965 Strap, Ground Appelez-nous -
100 364089 Wire, Ground Appelez-nous -
101 132848 Screw, 10-24 X 1 Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

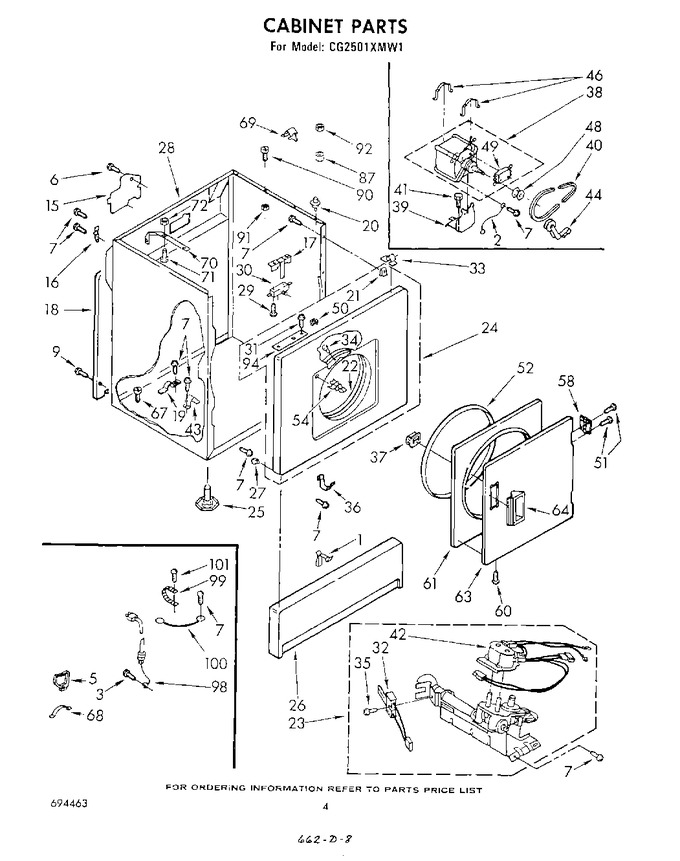

Diagram for GCG2501XMW1
