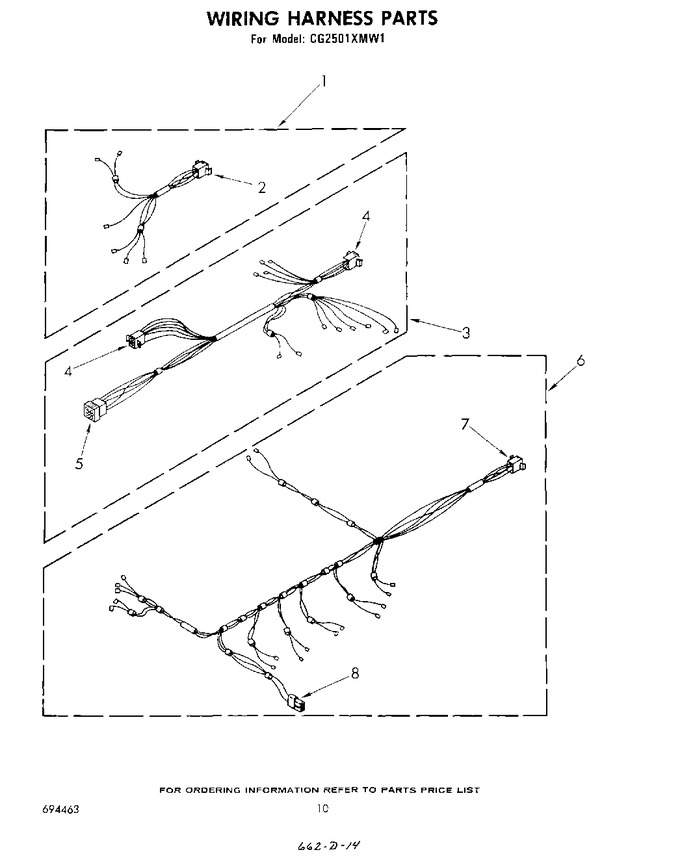

06 - Wiring Harness
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 695076 | Harness, Timer |
|
- | |||||
| 2 | 352457 | Plug, Terminal (6 Way) |
|
- | |||||
| 3 | 695512 | Harness, Wiring (upper) |
|
- | |||||
| 4 | 352458 | Cap, Terminal (6-way) (uses Terminal 94614) |
|
- | |||||
| 5 | 94612 | Cap, Terminal (9-way) |
|
- | |||||
| 6 | 695514 | Harness, Wiring (lower) |
|
- | |||||
| 7 | 94611 | Plug, Terminal (uses Terminal 94614) |
|
- | |||||
| 8 | 691707 | Cap, Terminal (uses Terminal 94614) |
|
- |
