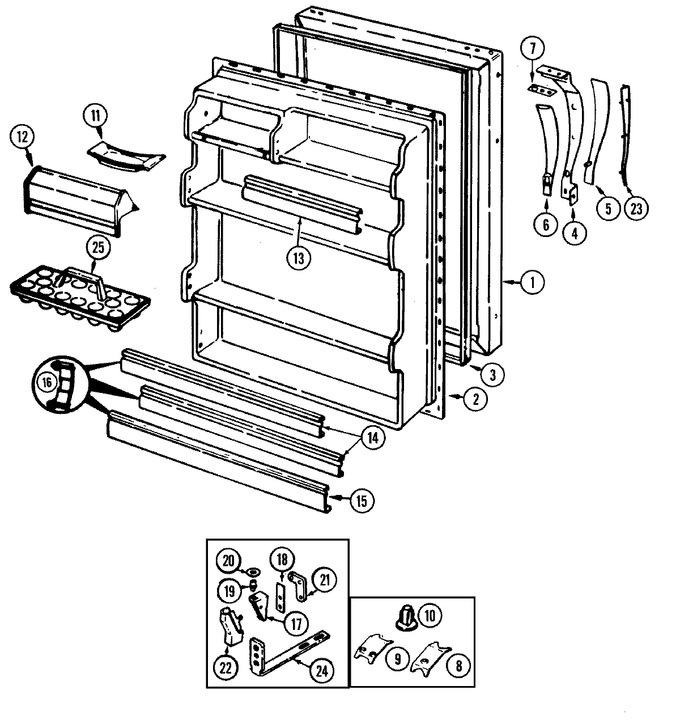

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 72342-5-AM | Panel, F.f. Door (alm) | 10 |
|
- | ||||
| 2 | 65275-5 | Screw | 10 |
|
- | ||||
| 2 | 69462-1 | Liner | 10 |
|
- | ||||
| 3 | 70025-8 | Gasket, F.f. Door | 10 |
|
- | ||||
| 4 | 69300-2 | Handle, Door | 10 |
|
- | ||||
| 4 | 65275-57 | Screw | 10 |
|
- | ||||
| 5 | 68036-4 | Insert (alm) | 10 |
|
- | ||||
| 6 | 60580-6 | Insert | 10 |
|
- | ||||
| 6 | 65275-53 | Screw | 10 |
|
- | ||||
| 7 | 69301-1 | Shim, Handle | 10 |
|
- | ||||
| 8 | 56209-3 | Clip, Stop Screw | 10 |
|
- | ||||
| 9 | 60123-2 | Clip, Stop Screw | 10 |
|
- | ||||
| 10 | 55782-6 | Plug Button (almond) | 10 |
|
- | ||||
| 11 | 29936-2 | Tray, Butter | 10 |
|
- | ||||
| 12 | 69058-28 | Door, Dairy | 10 |
|
- | ||||
| 12 | 69058-2 | Door, Dairy | 10 |
|
- | ||||
| 13 | WP61003045 | Trim, Shelf (Replaces: 68832-57) | 10 |
|
$ 129.55 | ||||
| 14 | WP61003045 | Trim, Shelf (26``) (Replaces: 68832-104) | 10 |
|
$ 129.55 | ||||
| 15 | WP61003045 | Trim, Shelf (Replaces: 68832-63) | 10 |
|
$ 129.55 | ||||
| 16 | WP65245-1 | Retainer, Shelf Trim (Replaces: 65245-1) | 10 |
|
$ 9.39 | ||||
| 17 | 69516-2 | Hinge, Lower (blk) | 10 |
|
- | ||||
| 17 | 65275-51 | Screw, Lower Hinge | 10 |
|
- | ||||
| 18 | 69510-1 | Shim, Lower Hinge | 10 |
|
- | ||||
| 19 | 69845-1 | Pin, Lower Hinge | 10 |
|
$ 44.55 | ||||
| 20 | 67483-3 | Washer, Lower Hinge (Replaces: 67483-2) | 10 |
|
Immediately | $ 45.86 | |||
| 21 | 67874-1 | Tapping Plate, Lower Hinge | 10 |
|
- | ||||
| 21 | 65275-59 | Screw | 10 |
|
- | ||||
| 22 | 68978-3 | Cover, Lower Hinge (alm) | 10 |
|
- | ||||
| 23 | 68048-5 | Insert, Vinyl | 10 |
|
- | ||||
| 24 | 69511-1 | Tapping Plate, Lower Hinge | 10 |
|
- | ||||
| 24 | 68987-1 | Stop, Door | 10 |
|
- | ||||
| 24 | 65275-48 | Screw | 10 |
|
- | ||||
| 25 | 60066-1 | Tray, Egg | 10 |
|
- |
