SELECT A DIAGRAM

01 - Freezer Compartment


02 - Freezer Door


03 - Fresh Food Compartment


04 - Fresh Food Door


05 - Optional Ice Maker Kit


06 - Shelves & Accessories


07 - Unit Compartment & System

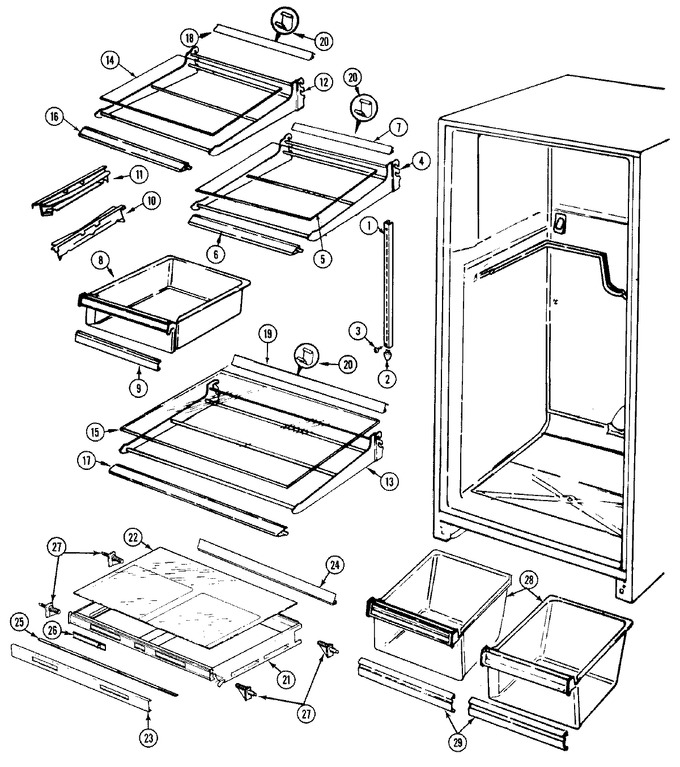

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	60096-7		Rail, Shelf Support (lt)	10	Appelez-nous	-
1	60096-8		Rail, Shelf Support (rt)	10	Appelez-nous	-
1	60096-9		Rail, Shelf Support (center)	10	Appelez-nous	-
2	60340-1		End Cap, Center Rail	10	Appelez-nous	-
3	400037-28		Screw	10	Appelez-nous	-
4	60570-41		Frame, Shelf	10	Appelez-nous	-
5	66604-35		Shelf, Meat	10	Appelez-nous	-
6	60524-42		Trim Shelf	10	Appelez-nous	-
7	65276-36		Trim, Rear-1/2 Shelf	10	Appelez-nous	-
8	66636-60		Pan, Meat	10	Appelez-nous	-
9	60132-102		Handle, Meat Keeper	10	Appelez-nous	-
10	66813-4		Rail	10	Appelez-nous	-
11	66814-4		Rail	10	Appelez-nous	-
12	60570-41		Frame, Shelf	10	Appelez-nous	-
13	60570-48		Frame, Shelf	10	Appelez-nous	-
14	66604-27		Glass, Shelf	10	Appelez-nous	-
15	66604-26		Glass, Cantilever Shelf	10	Appelez-nous	-
16	60524-42		Trim Shelf	10	Appelez-nous	-
17	60524-39		Trim	10	Appelez-nous	-
18	65276-3		Trim	10	Appelez-nous	-
19	65276-27		Trim, Rear-full	10	Appelez-nous	-
20	66333-1		Clip, Shelf Trim	10	Appelez-nous	-
21	68735-1		Shelf, Crisper	10	Appelez-nous	-
22	68743-15		Shelf, Crisper	10	Appelez-nous	-
23	68744-3		Trim	10	Appelez-nous	-
24	68798-2		Trim	10	Appelez-nous	-
25	68797-2		Seal	10	Appelez-nous	-
26	68742-1		Slide, Control	10	Appelez-nous	-
27	68836-1		Stud, Crisper Support	10	Appelez-nous	-
28	68223-117		Pan, Crisper	10	Appelez-nous	-
29	60132-107		Trim, Crisper	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
