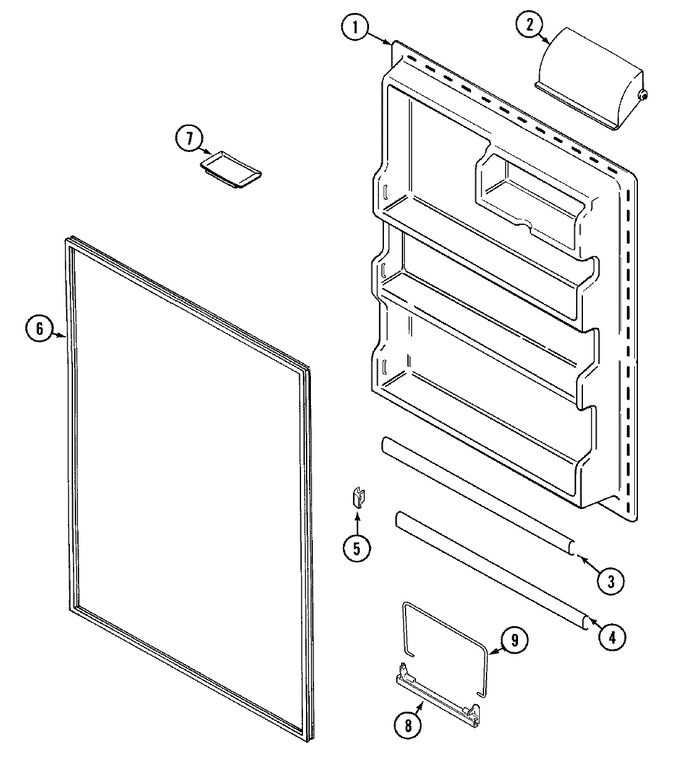

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	65275-5		Screw	10	Appelez-nous	-
1	61002788		Liner, F.f. Door	10	Appelez-nous	-
2	61002696		Door, Dairy	10	Appelez-nous	-
3	61002610		Trim, Door Shelf	10	Appelez-nous	-
3	W11045462		Trim, Door (25.5)   (Replaces: 61002608)	10			$ 69.47
4	61002780		Trim, Door Shelf (26 1/4``)	10	Appelez-nous	-
5	WP61002112		End Cap, Shelf Trim   (Replaces: 61002112)	10		Immediately	$ 14.71
6	WP61004010		Seal, F.f. Door (wht)   (Replaces: 61004010)	10			$ 296.04
7	29936-2		Tray, Butter	10	Appelez-nous	-
8	61005237		Retainer, Bottle	10	Appelez-nous	-
9	61004926		Retainer, Wire	10	Appelez-nous	-
