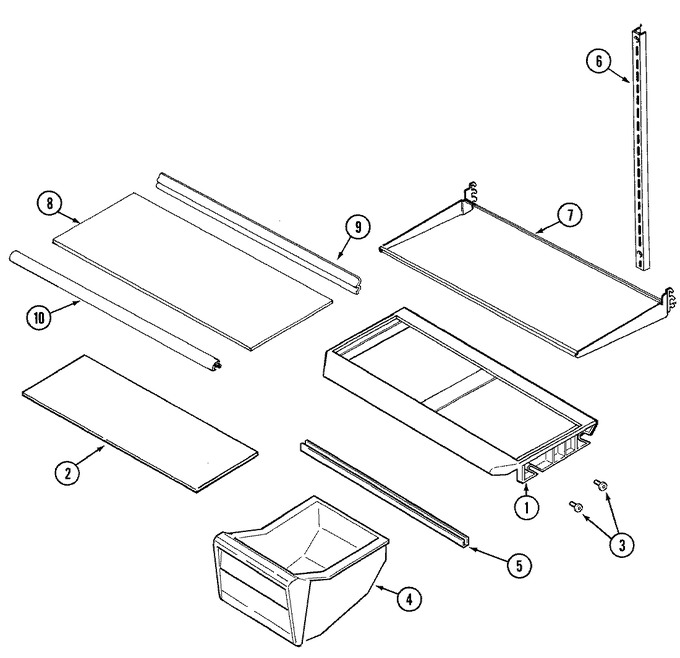

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	61004701		Shelf, Crisper	10	Appelez-nous	-
2	61002532		Glass, Crisper Shelf	10			$ 85.72
3	WP489478		Screw   (Replaces: 400017-1)	10			$ 6.98
3	67764-1		Support, Crisper Shelf	10			$ 8.05
4	61002779		Pan, Crisper	10	Appelez-nous	-
5	61004645		Rail, Crisper Support	10	Appelez-nous	-
6	61002254		Rail, Shelf Support (lt/rt)	10	Appelez-nous	-
6	WP489478		Screw   (Replaces: 400017-1)	10			$ 6.98
7	61002768		Frame, Full Shelf	10	Appelez-nous	-
8	61002764		Glass, Full Shelf	10	Appelez-nous	-
9	61002527		Trim, Full Shelf (rear)	10	Appelez-nous	-
10	61002528		Trim, Full Shelf (frt)	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
