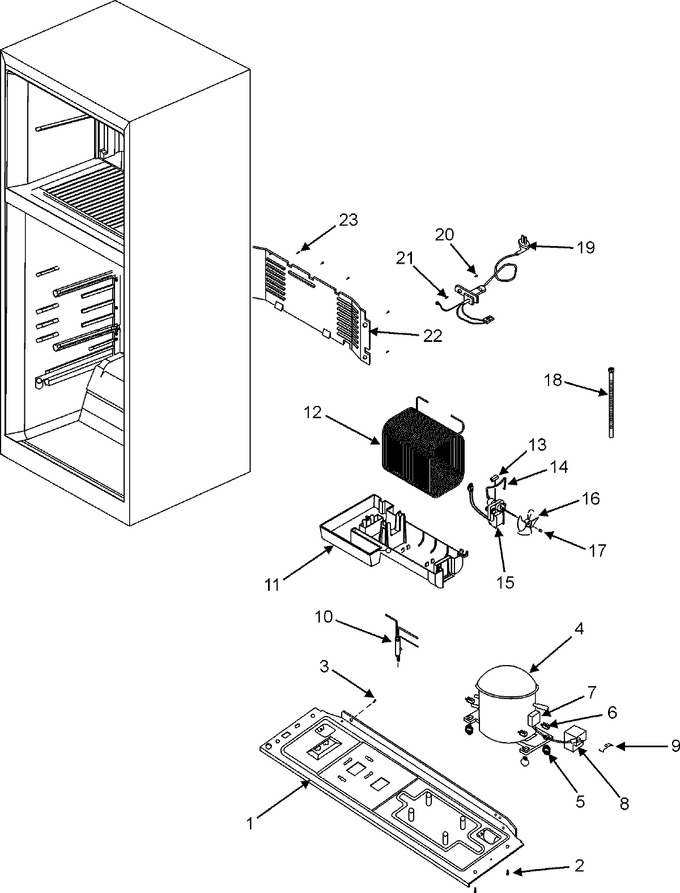

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	63001963		Base, Compressor		Appelez-nous	-
2	63002005		Bolt		Appelez-nous	-
3	W11233072		Screw   (Replaces: 63001096)			Immediately	$ 12.62
4	12002734		Compressor Kit (115v/60hz)		Appelez-nous	-
4	12002743		Compressor Kit (127v/60hz)		Appelez-nous	-
5	63001932		Grommet, Compressor		Appelez-nous	-
6	63002007		Washer		Appelez-nous	-
7	63002011		Switch, P Relay As		Appelez-nous	-
7	63001902		Switch, P Relay As		Appelez-nous	-
8	63001950		Cover, Relay		Appelez-nous	-
9	63001944		Clamp, Relay		Appelez-nous	-
10	63001964		Dryer		Appelez-nous	-
11	63001940		Pan, Drain		Appelez-nous	-
12	63001990		Condenser		Appelez-nous	-
13	63001931		Grommet, Cond. Motor		Appelez-nous	-
14	63001958		Clip, C Motor		Appelez-nous	-
15	63001983		Motor, Condenser Fan		Appelez-nous	-
16	63002020		Blade, Condenser Fan		Appelez-nous	-
17	63001813		Clip, Fan Blade				$ 7.30
18	63001977		Hose, Drain		Appelez-nous	-
19	63001924		Cord, Power		Appelez-nous	-
19	63001905		Cord, Power (v Plug As)		Appelez-nous	-
20	W11233072		Screw   (Replaces: 63001096)			Immediately	$ 12.62
21	63001996		Screw		Appelez-nous	-
22	63001969		Grille		Appelez-nous	-
23	W11233072		Screw   (Replaces: 63001096)			Immediately	$ 12.62
