SELECT A DIAGRAM

01 - Cabinet


02 - Compressor

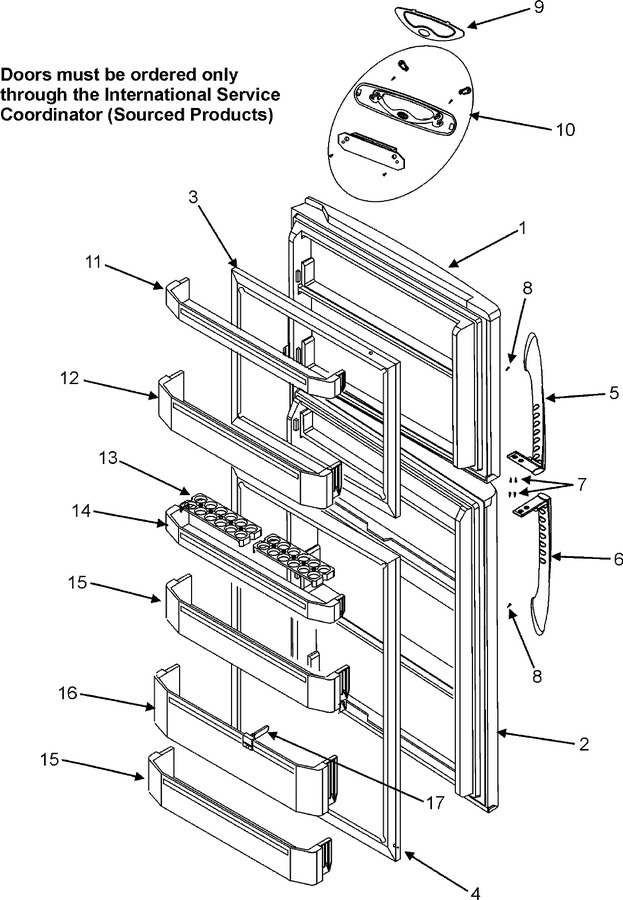

03 - Doors


04 - Freezer Compartment


05 - Refrigerator Compartment


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y00000000		See Note		Appelez-nous	-
2	Y00000000		See Note		Appelez-nous	-
3	63001967		Gasket, Frz. Door (wht)		Appelez-nous	-
4	63001968		Gasket, Ref. Door (wht)		Appelez-nous	-
5	63001974		Handle, Frz. Door (wht)		Appelez-nous	-
6	63001975		Handle, Ref. Door (wht)		Appelez-nous	-
7	63001432		Screw				$ 4.83
8	63001435		Screw				$ 4.83
9	63002015		Cover, Control Panel		Appelez-nous	-
10	63001988		Panel Assy., Control (wht)		Appelez-nous	-
11	63001992		Shelf, Frz. Door (top)		Appelez-nous	-
12	63001993		Shelf, Frz. Door (btm)		Appelez-nous	-
13	63001941		Tray, Egg		Appelez-nous	-
14	63001991		Shelf, Egg P.o.		Appelez-nous	-
15	63001995		Shelf, Ref. Door (multi)		Appelez-nous	-
16	63001994		Shelf, Ref. Door (jumbo)		Appelez-nous	-
17	63001973		Guide, Shelf		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
