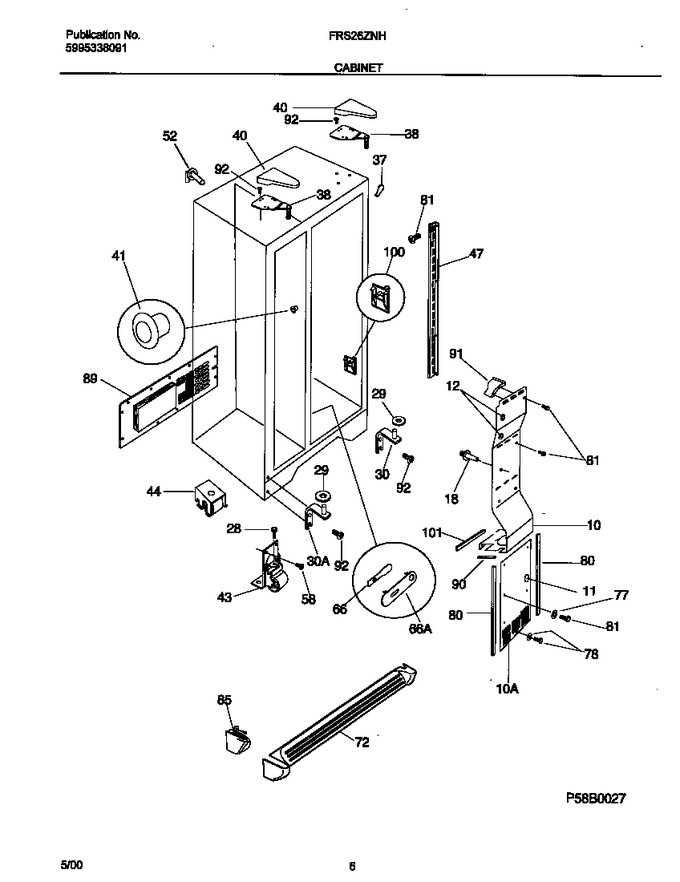

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	215637602		Cover-air Duct				$ 139.65
11	5303208309		Plug-hole, Factory Test				$ 45.50
12	5303001147		Plug-harness Hole   (Replaces: 215230400)				$ 22.30
18	5303289043		Support-air Duct Cvr, 2.55`` Long		Appelez-nous	-
28	5303289062		Bolt-roller Adj,hex Head,5/16-24 X 7/8		Appelez-nous	-
29	215314301		Washer,.40 X .75 X .06 ,nylon				$ 3.94
30	215008900		Bracket-lower Hinge,rh ,w/hinge Pin		Appelez-nous	-
37	5303321081		Trim-cabinet Corner, White				$ 8.82
40	5303318773		Cover-upper Hinge, White				$ 42.47
41	5304509705		Grommet,shelf/rod Mtg ,rs   (Replaces: 5303001609)				$ 10.01
43	218615300		Roller Assy, Front, (2)		Appelez-nous	-
44	218738300		Roller Assy, Rear, (2)				$ 51.98
47	218659500		Channel-shelf Mtg,side ,(2)				$ 121.38
52	215454600		Tube-water,ice Mold Fill ,elbow				$ 81.11
58	5308002748		Screw		Appelez-nous	-
66	218171301		Cover-meat Kpr Dmpr				$ 45.09
66	215050201		Damper-meat Keeper		Appelez-nous	-
72	218359601		Grille/kickplate, White				$ 167.98
77	5303001216		Washer-nylon,3/16 X 5/8 Od		Appelez-nous	-
78	5303274237		Screw-bracket, Hex Washer Head, 8-32(ca) X 1/2		Appelez-nous	-
80	218249802		Seal-coil Cover, (2)		Appelez-nous	-
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
85	218922702		Cover-lower Hinge,white		Appelez-nous	-
89	218871501		Cover-machine Compt		Appelez-nous	-
90	215022602		Seal-foam		Appelez-nous	-
91	218770000		Deflector-air, Air Duct Cover				$ 20.42
92	241710601		Screw   (Replaces: 5303001479)				$ 13.46
100	5303288973		Support-pan Cover				$ 24.41
*53402	5303209814		Nut,``u`` Type ,8-15(a) ,fan Mtr Mtg		Appelez-nous	-
*53403	5303289044		Support-air Duct Cvr,1.83`` Long		Appelez-nous	-
*53404	215598900		Washer-flat, .691 X 1 X .05, Zinc, I&w Hinge Brkt		Appelez-nous	-
*53405	218871201		Washer,nylon ,0.363 Id W/nibs		Appelez-nous	-
*53406	218979701		Tapping Plate,lower Hinge		Appelez-nous	-
*53407	5304500407		Grommet,shelf Mtg ,ls   (Replaces: 5308009759)			Immediately	$ 6.38
*53408	5308017044		Screw-roller Mtg,spcl Ind Hex Hd, 5/16-18(23) X 7/8				$ 6.34
*53409	5303289036		Gasket-coil Cover,(2)		Appelez-nous	-
*53410	5303289037		Gasket-air Duct Cvr,(2)		Appelez-nous	-
*53411	5303322647		Tape-foam		Appelez-nous	-
*53412	218902101		Cap-protector, Lower Hinge		Appelez-nous	-
*53413	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 13.46
101A	215305702		Seal-foam		Appelez-nous	-
101B	218663103		Gasket-air Duct Cvr		Appelez-nous	-
10A	215637401		Cover-evap Coil, Lower		Appelez-nous	-
10B	5308009617		Washer,ext Tooth Lock ,no.10 ,grounding		Appelez-nous	-
30A	215009100		Bracket-lower Hinge, Lh, W/hinge Pin		Appelez-nous	-
30B	218979601		Tapping Plate,lower Hinge		Appelez-nous	-
38A	218215245		Bracket-upper Hinge,with Closer ,white ,lh				$ 99.65
38B	218215247		Bracket-upper Hinge,with Closer ,white ,rh				$ 132.35
