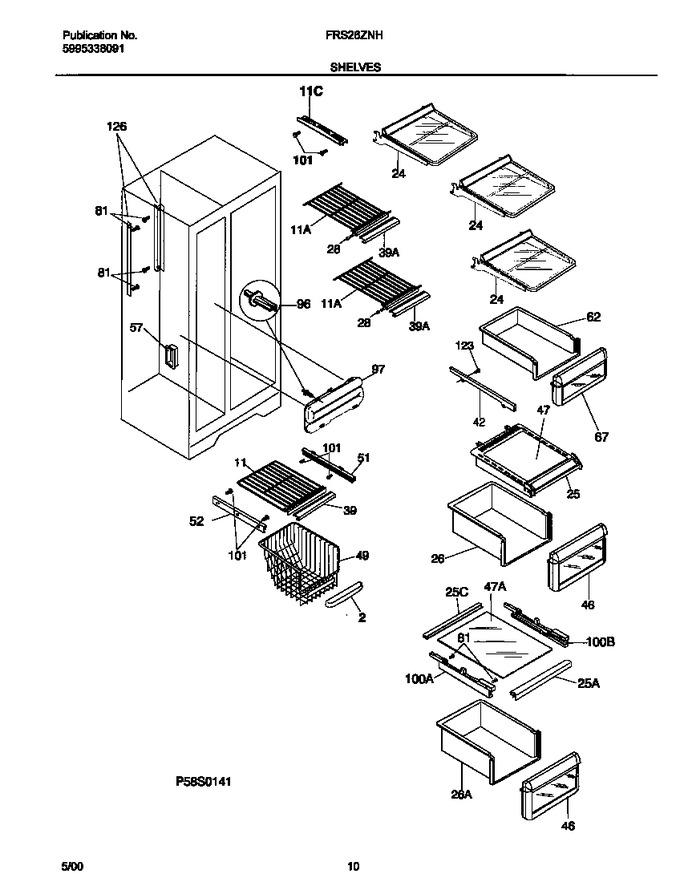

05 - Shelves


06 - Controls


07 - System


08 - I&w Dispenser


09 - Ice Container


10 - Ice Maker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5303298147		Trim-basket				$ 60.38
11	218298003		Shelf, Freezer, Sliding, Wire		Appelez-nous	-
11	240324101		Shelf-pizza				$ 59.91
11	5304405879		Shelf-freezer,fixed Wire		Appelez-nous	-
24	215029009		Shelf-``spill-safe``,cantilever ,sliding		Appelez-nous	-
25	215124343		Cover-storage Pan		Appelez-nous	-
25	218015302		Trim-storage Pan Cvr, Snap-on, Front		Appelez-nous	-
25	218015402		Trim-storage Pan Cvr, Snap-on, Rear		Appelez-nous	-
26	5303289500		Pan-storage,upper				$ 174.74
26	5303289501		Pan-storage,lower				$ 164.85
28	08013638		End Cap-shelf, Protector, Lower Fzr Shelf		Appelez-nous	-
39	215217543		Trim-frzr Shelf		Appelez-nous	-
39	215217558		Trim-frzr Shelf		Appelez-nous	-
42	215002301		Hanger-pan / Tray, Lh				$ 65.82
46	5304411659		Front-storage Pan				$ 206.96
47	215723552		Insert-pan Cover,16.31`` X 17.32`` ,glass				$ 77.10
47	218498182		Insert-pan Cover,glass		Appelez-nous	-
49	5303296573		Basket-sliding		Appelez-nous	-
51	5303296575		Hanger-basket, Rh				$ 49.78
52	215162502		Hanger, Basket, Lh, With Spring				$ 101.35
57	5303271653		Ferrule-inner				$ 20.27
62	5303289517		Tray - Deli				$ 133.19
67	5304411662		Front-deli Tray				$ 137.29
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
96	215192600		Support - Water Tank				$ 10.71
97	5303918258		Water Tank   (Replaces: 218942701)				$ 121.63
101	5304455650		Screw,hex Wshr Hd ,8-18ab X 0.750 ,gusset/hanger   (Replaces: 215005000)				$ 14.18
123	215005101		Screw-roller/hanger`8-10 X 0.438   (Replaces: 215005100)				$ 14.89
*53417	218159700		Spacer-shelf		Appelez-nous	-
*53418	5303301393		Control-humidity		Appelez-nous	-
*53419	5304412757		Trim-storage Pan Cvr,upper ,w/humidity Hole		Appelez-nous	-
*53420	215002401		Hanger-pan/tray, Rh				$ 85.84
*53421	5303299662		Hanger-basket, Lh				$ 119.18
*53422	215328300		Clip-shelf				$ 14.02
100A	218015501		Support-pan Cover, Lh				$ 37.26
100B	218015601		Support-pan Cover, Rh				$ 55.18
126A	218867401		Channel,auger Mtg ,lh		Appelez-nous	-
126B	218867402		Channel`auger Mtg ,rh		Appelez-nous	-
