01 - Body
02 - Control Panel
03 - Door\drawer
04 - Oven
05 - Top Assy.
06 - Wiring Information
SELECT A DIAGRAM
New Model Search:

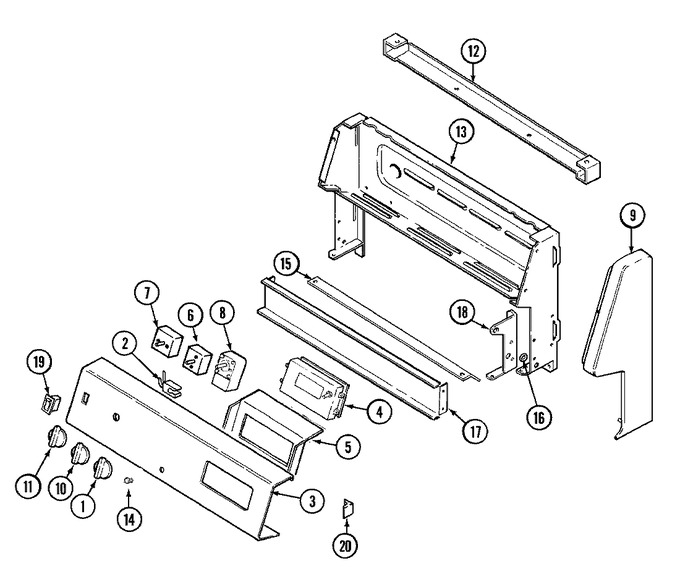

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7735P037-60 | Knob, Thermostat (blk)----na | 10 |
|
- | ||||
| 2 | W10852510 | Light, Indicator (Replaces: 7407P102-60) | 10 |
|
$ 106.11 | ||||
| 3 | WPY706189 | Screw (8abx3/8-blk) (Replaces: 7101P347-60) | 10 |
|
Immediately | $ 6.47 | |||
| 3 | 7719P073-60 | Nameplate (hoover) | 10 |
|
- | ||||
| 3 | 7703P641-60 | Panel, Control (blk)----na | 10 |
|
- | ||||
| 4 | 7602P122-60 | Clock (blk) | 10 |
|
- | ||||
| 4 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 5 | 3801F340-45 | Bracket, Clock | 10 |
|
- | ||||
| 5 | WPY706189 | Screw (8abx3/8-blk) (Replaces: 7101P347-60) | 10 |
|
Immediately | $ 6.47 | |||
| 6 | WP7403P255-60 | Switch, Selector (Replaces: 7403P255-60) | 10 |
|
$ 131.41 | ||||
| 7 | WP7403P238-60 | Switch, Infinite (sml Element) (Replaces: 7403P238-60) | 10 |
|
Immediately | $ 57.78 | |||
| 7 | WP7101P309-60 | Screw (Replaces: 7101P309-60) | 10 |
|
Immediately | $ 6.26 | |||
| 7 | WP7403P239-60 | Switch, Infinite (lrg Element) (Replaces: 7403P239-60) | 10 |
|
Immediately | $ 35.10 | |||
| 8 | 7404P105-60 | Thermostat | 10 |
|
$ 208.86 | ||||
| 9 | 7726P059-60 | End Cap (lt-blk) | 10 |
|
- | ||||
| 9 | 7726P060-60 | End Cap (rt-blk) | 10 |
|
- | ||||
| 10 | 7739P043-60 | Knob, Selector (blk) | 10 |
|
- | ||||
| 11 | 7737P035-60 | Knob, Infinite (blk) | 10 |
|
- | ||||
| 12 | 4001F064-51 | Extension, Control Panel | 10 |
|
- | ||||
| 13 | 4001F091-51 | Housing, Control Panel | 10 |
|
- | ||||
| 14 | W11690131 | Lens, Indicator Light (Replaces: 7730P012-60) | 10 |
|
$ 6.73 | ||||
| 15 | 3604F201-80 | Shield, Sight | 10 |
|
- | ||||
| 16 | WP3195558 | Nut, Speed (Replaces: 7103P129-60) | 10 |
|
$ 7.68 | ||||
| 17 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 18 | 3802F088-51 | Brace, Control Panel | 10 |
|
- | ||||
| 19 | 7403P067-60 | Switch, Rocker (blk) | 10 |
|
$ 91.35 | ||||
| 20 | 3418D097-60 | Hinge, Main Top (lt) | 10 |
|
- | ||||
| 20 | 3418D098-60 | Hinge, Main Top (rt) | 10 |
|
- | ||||
| 21 | 5170D118-60 | Harness, Control Panel | 10 |
|
- | ||||
| 22 | 5125A315-60 | Harness, Loose Wire | 10 |
|
- | ||||
| 23 | 8113P023-60 | Manual, Use & Care | 10 |
|
- |
