New Model Search:

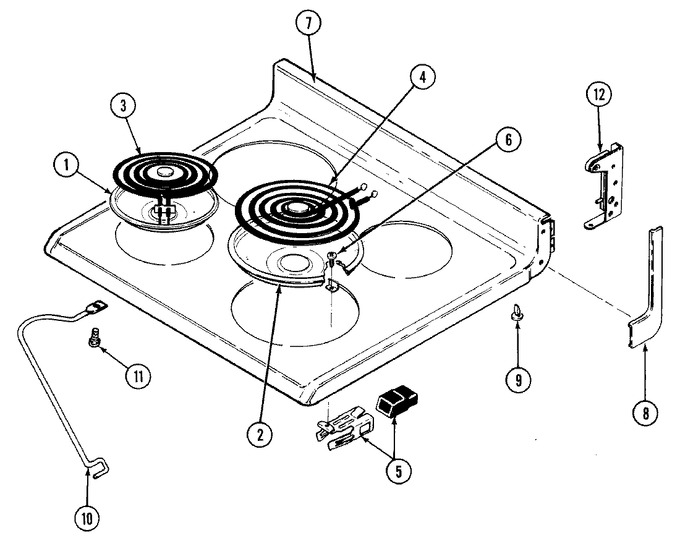

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10196406 | Bowl, Drip (6``) (Replaces: 7725P008-60) | 10 |
|
Immediately | $ 12.05 | |||
| 1 | WPW10196406 | Bowl, Drip (6``)(w/hole-chr) (Replaces: 7725P015-60) | 10 |
|
Immediately | $ 12.05 | |||
| 2 | WPW10196405 | Bowl, Drip (8``) (Replaces: 7725P009-60) | 10 |
|
Immediately | $ 15.56 | |||
| 3 | WPY04000036 | Element (6``) (Replaces: Y04000036) | 10 |
|
$ 88.70 | ||||
| 4 | WPY04000035 | Element (8``) (Replaces: Y04000035) | 10 |
|
$ 160.60 | ||||
| 5 | 12001676 | Kit, Receptacle (Replaces: 1430306K) | 10 |
|
Immediately | $ 28.45 | |||
| 6 | WP74004005 | Screw (Replaces: 7118P013-60) | 10 |
|
$ 6.95 | ||||
| 7 | 2002W099-81 | Top, Main (wht) | 10 |
|
- | ||||
| 8 | WP3195558 | Nut, Speed (Replaces: 7103P044-60) | 10 |
|
$ 7.68 | ||||
| 8 | 7746P030-60 | End Cap (rt-blk) | 10 |
|
$ 26.16 | ||||
| 8 | 7746P031-60 | End Cap (lt-blk) | 10 |
|
$ 26.25 | ||||
| 9 | 8016P015-60 | Glide | 10 |
|
$ 5.65 | ||||
| 10 | 7809P020-60 | Support, Prop Top | 10 |
|
- | ||||
| 11 | 7101P280-60 | Screw W/washer (blk) | 10 |
|
- | ||||
| 12 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 12 | 3418D098-60 | Hinge, Main Top (rt) | 10 |
|
- | ||||
| 12 | 3418D097-60 | Hinge, Main Top (lt) | 10 |
|
- | ||||
| 13 | 5175D049-60 | Harness, Panel To Top | 10 |
|
- |
