SELECT A DIAGRAM

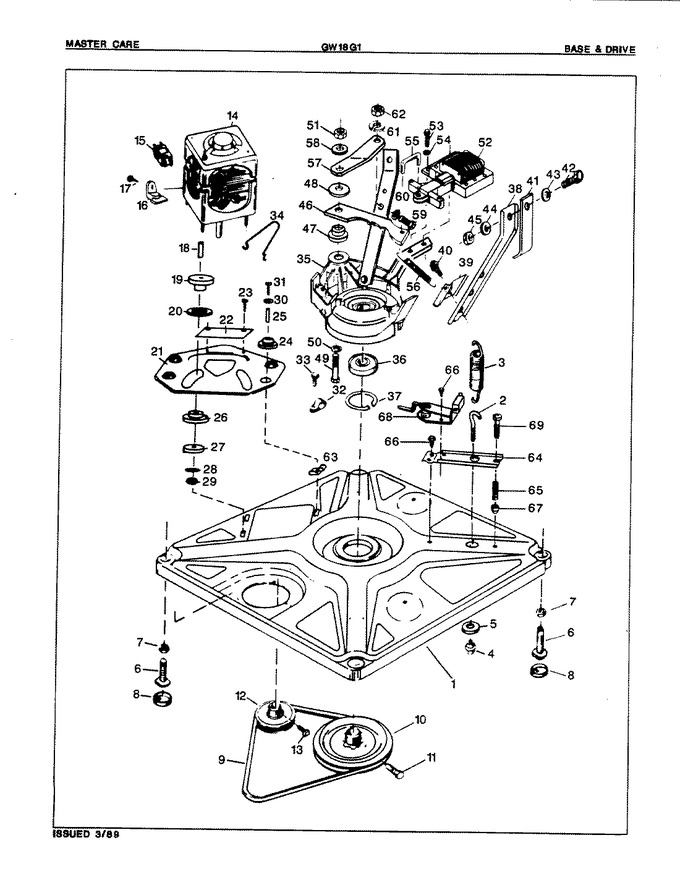

01 - Base & Drive


02 - Control Panel


03 - Exterior


04 - Transmission


05 - Tub


06 - Water Carrying


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	35-0058		Base Asm		Appelez-nous	-
2	25-7365		Eye Bolt		Appelez-nous	-
3	33-9553		Spring		Appelez-nous	-
4	25-7362		Anchor Nut		Appelez-nous	-
5	W10124350		Not Required Part Or See Note Washer (purchased Locally)		Appelez-nous	-
6	33-0679		Adj Foot Asm		Appelez-nous	-
6	35-0771		Leveling Leg		Appelez-nous	-
7	25-7032		Lock Nut		Appelez-nous	-
8	34-0062		Pad		Appelez-nous	-
9	35-0465		Drive Belt		Appelez-nous	-
10	33-9374		Drive Pulley		Appelez-nous	-
11	25-7361		Set Screw		Appelez-nous	-
12	33-9952		Motor Pulley		Appelez-nous	-
13	25-7117		Set Screw		Appelez-nous	-
14	LA-1010		Motor Kit		Appelez-nous	-
15	33-9990		Motor Switch		Appelez-nous	-
15	33-9997		Motor Switch		Appelez-nous	-
16	33-9945		Slide, Foot		Appelez-nous	-
17	WP308544		Screw Purchase   (Replaces: 25-7418)			Immediately	$ 6.98
18	25-7830		Spacer				$ 8.39
19	33-9946		Isolator, Motor				$ 32.40
20	33-9944		Washer		Appelez-nous	-
21	33-9942		Motor Plate		Appelez-nous	-
22	33-9947		Dbl.pivot Slide		Appelez-nous	-
23	25-6121		Screw		Appelez-nous	-
24	WP35-3646		Isolator, Motor Plate   (Replaces: 33-9941)				$ 6.69
25	25-7831		Spacer				$ 8.04
26	33-9943		Motor Slide		Appelez-nous	-
27	33-9967		Washer, Motor Isolator				$ 5.27
28	25-7047		Washer, Flat				$ 30.39
29	WP3400029		Nut, Locator Pin   (Replaces: 25-0224)			Immediately	$ 6.98
30	25-7834		Washer		Appelez-nous	-
31	25-7833		Screw		Appelez-nous	-
32	25-7265		Wiring Clamp		Appelez-nous	-
33	25-3106		Screw		Appelez-nous	-
33	16515		Clip, Wiring   (Replaces: 25-7027)				$ 17.60
34	35-0235		Spring, Motor Pivot		Appelez-nous	-
35	33-9579		Susp Housing		Appelez-nous	-
36	63-5225		Bearing		Appelez-nous	-
37	25-7850		Retaining Ring		Appelez-nous	-
38	33-9569		Tub Brace		Appelez-nous	-
39	33-9391		Bracket		Appelez-nous	-
40	25-7674		Screw		Appelez-nous	-
40	25-7359		Screw		Appelez-nous	-
41	33-6880		Bracket		Appelez-nous	-
42	25-7275		Screw		Appelez-nous	-
43	25-7413		Flat Washer		Appelez-nous	-
44	25-7089		Lockwasher		Appelez-nous	-
45	33-4287N		Brake Latch Kit		Appelez-nous	-
45	25-0048		Nut		Appelez-nous	-
46	33-9576		Brake Latch		Appelez-nous	-
47	33-9966		Brk Ltch Bearng		Appelez-nous	-
48	33-0279		Washer		Appelez-nous	-
49	25-7843		Bolt		Appelez-nous	-
50	25-6118		Lockwasher		Appelez-nous	-
51	25-7304		Locknut		Appelez-nous	-
52	33-8291		Brake Solenoid		Appelez-nous	-
53	25-7432		Screw		Appelez-nous	-
54	25-6117		Lockwasher		Appelez-nous	-
55	33-9521		Brake Link		Appelez-nous	-
56	35-0590		Latch Spring		Appelez-nous	-
57	33-9554		Support Brace		Appelez-nous	-
58	25-7549		Flat Washer		Appelez-nous	-
59	25-7275		Screw		Appelez-nous	-
60	25-7413		Flat Washer		Appelez-nous	-
61	25-7089		Lockwasher		Appelez-nous	-
62	25-7798		Hex Nut		Appelez-nous	-
63	25-7838		Speednut		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
