SELECT A DIAGRAM

01 - Base & Drive


02 - Control Panel


03 - Exterior


04 - Transmission


05 - Tub


06 - Water Carrying

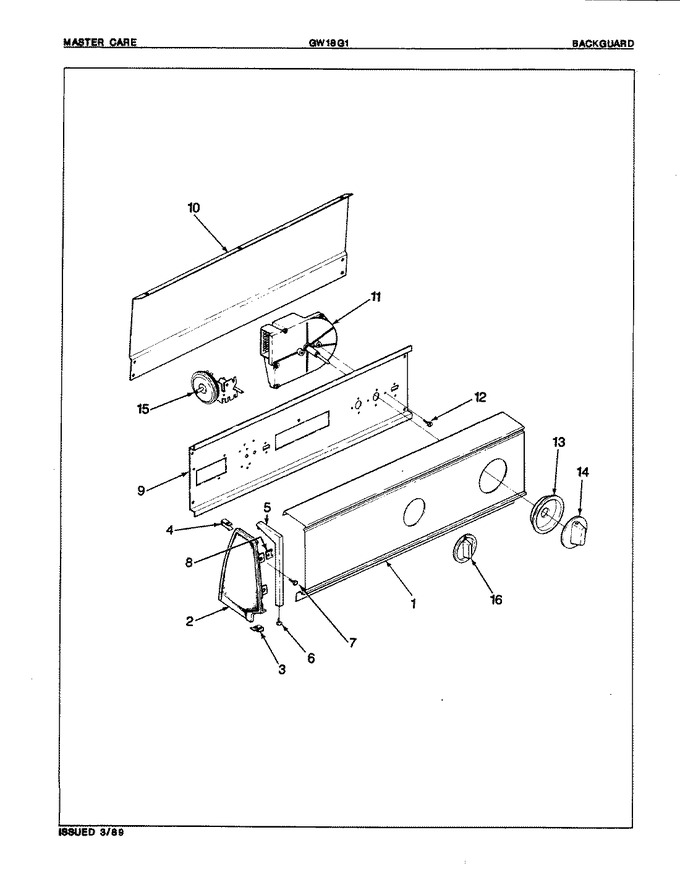

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	35-1072		Control Panel		Appelez-nous	-
2	53-0264		Rh Endcap		Appelez-nous	-
2	53-0265		Lh Endcap		Appelez-nous	-
3	25-7702		Speedclip, End Cap To Ctrl Pnl		Appelez-nous	-
3	25-7649		Screw		Appelez-nous	-
3	25-7697		Screw		Appelez-nous	-
3	25-7851		Speedclip, End Cap To Top		Appelez-nous	-
3	34-9487		Plate, Reinforcement		Appelez-nous	-
4	WP33002917		Screw   (Replaces: 25-7435)			Immediately	$ 6.90
4	25-7852		Speedclip, Rr Shld To End Cap		Appelez-nous	-
5	53-0279		Trim, End Cap (rt)		Appelez-nous	-
5	53-0280		Trim, End Cap (lt)		Appelez-nous	-
6	25-7760		Screw		Appelez-nous	-
7	25-7702		Speedclip, End Cap To Ctrl Pnl		Appelez-nous	-
8	WP90767		Screw   (Replaces: 25-3092)			Immediately	$ 7.04
9	53-0365		Control Shield		Appelez-nous	-
10	WP90767		Screw   (Replaces: 25-3092)			Immediately	$ 7.04
10	53-0268		Rear Shield		Appelez-nous	-
10	25-7853		Retaining Ring		Appelez-nous	-
10	WP12990527		Screw, Sems   (Replaces: 25-3457)			Immediately	$ 7.15
11	35-0484		Timer		Appelez-nous	-
11	35-0115		Timer Mtr 1rpm		Appelez-nous	-
12	WP489483		Screw   (Replaces: 25-0088)				$ 9.78
13	35-0679		Knob Asm		Appelez-nous	-
14	35-0496		Timer Knob		Appelez-nous	-
15	35-0781		Pressure Switch		Appelez-nous	-
15	WP90767		Screw   (Replaces: 25-3092)			Immediately	$ 7.04
16	W10124350		Not Required Part Or See Note Selector Knob		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
