SELECT A DIAGRAM

02 - Backguard


03 - Body Parts


04 - Cooktop And Broiler Parts


05 - Drawer Parts


06 - Door Parts

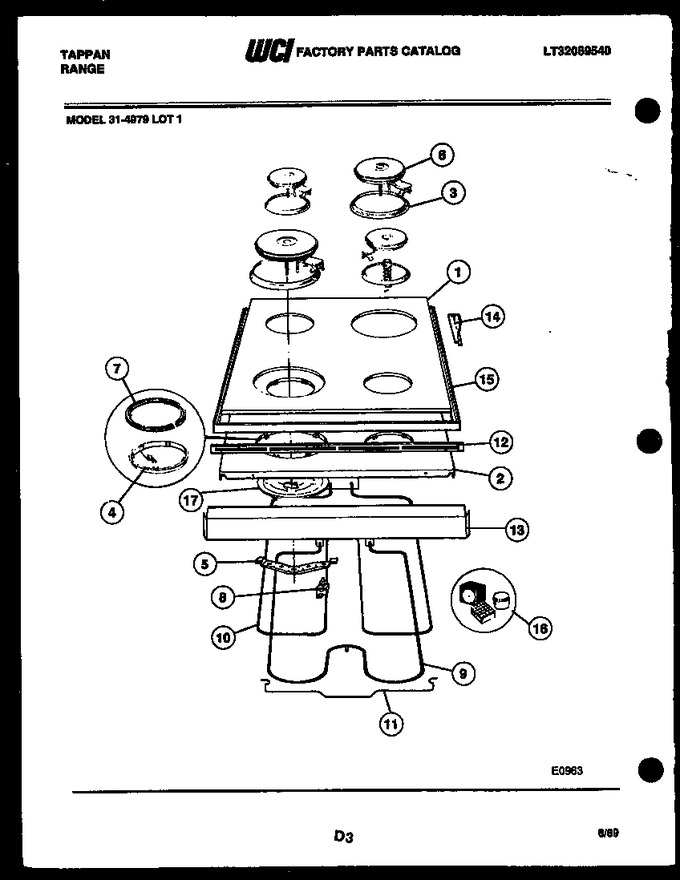

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3051156		Glass-main Top		Appelez-nous	-
2	3018329		Panel-glass Support		Appelez-nous	-
3	3051334		Trim-ring Outer Sm (2)		Appelez-nous	-
4	3051337		Trim-ring Inner Sm (2)		Appelez-nous	-
5	3051122		Channel-top Element Mtg Med (2)		Appelez-nous	-
6	3051142		Element - Top Sm (2)		Appelez-nous	-
7	3018330		Seal-top Element Small (2)		Appelez-nous	-
8	3051885		Switch-thermal Protector (4)		Appelez-nous	-
9	316075103		Element-bake   (Replaces: 3203534)			Immediately	$ 42.36
10	3051140		Element, Broil		Appelez-nous	-
11	3051373		Support-broil Element		Appelez-nous	-
12	355T377S01		Trim-main Top Front		Appelez-nous	-
13	3204771		Panel - Manifold		Appelez-nous	-
14	3131286		Brkt Main Top Hng Lh		Appelez-nous	-
15	3204894		Trim-main Top Frame		Appelez-nous	-
16	3051627		Cleaner-element		Appelez-nous	-
14A	3131287		Brkt Main Top Hng Rh		Appelez-nous	-
3A	3051335		Trim-ring Outer Med (2)		Appelez-nous	-
3B	3051336		Trim-ring Outer Large		Appelez-nous	-
4A	3051338		Trim-ring Inner Med (2)		Appelez-nous	-
4B	3051339		Trim-ring Inner Large		Appelez-nous	-
5A	3051120		Channel-top Element Mtg Sm (2)		Appelez-nous	-
6A	3051143		Element - Top Med (2)		Appelez-nous	-
6B	3051144		Element-top Large		Appelez-nous	-
7A	3018331		Seal-top Element Med		Appelez-nous	-
7B	3018332		Seal-top Element Lg		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
