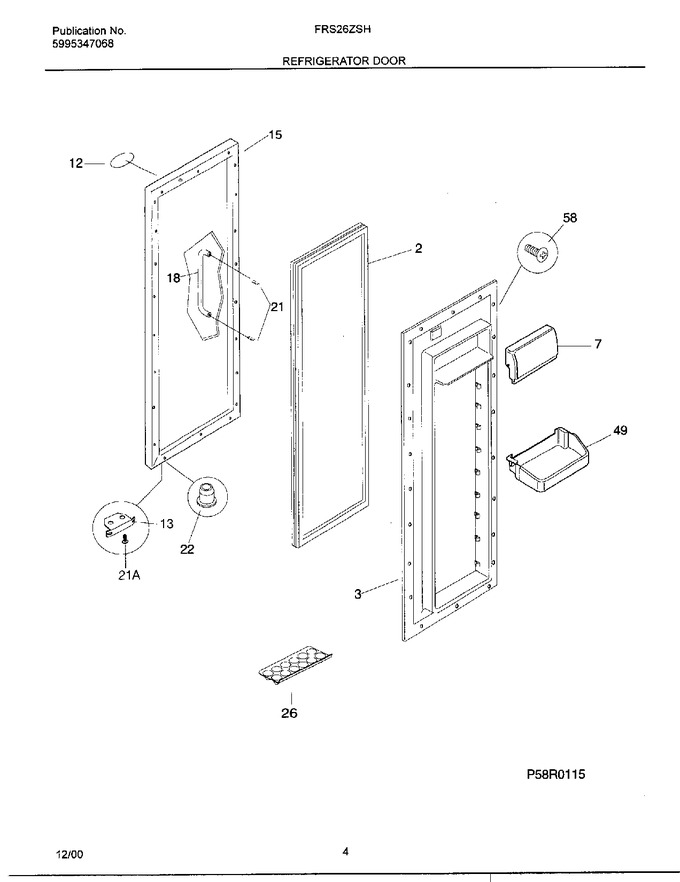

04 - Refrigerator Door


06 - Cabinet


08 - Shelves


10 - Controls


12 - System


14 - Dispenser


16 - Ice Container


18 - Ice Maker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	215403201		Panel-inner Door, Refr		Appelez-nous	-
7	5304404909		Door-dairy		Appelez-nous	-
12	218395402		Nameplate, White		Appelez-nous	-
12	218395401		Nameplate, Black		Appelez-nous	-
13	5303289522		Door Stop				$ 40.17
15	218631600		Panel-refr Door, Stainless Steel, W/foam Insulatn		Appelez-nous	-
18	218756501		Handle-door, Stainless Steel, With Insert		Appelez-nous	-
21	241501301		Screw,swageform ,10-32 X 0.750		Appelez-nous	-
22	5303289320		Bearing-hinge				$ 19.69
26	215817806		Tray-egg				$ 13.46
49	218592303		Bin-door, ``mongo``		Appelez-nous	-
58	218781101		Screw,pan Head ,8-18 X 0.625   (Replaces: 218781100)				$ 15.60
21A	218578600		Screw-door Stop Mtg, Phl Truss Hd, 10-16 X 3/4				$ 8.08
F2	215734314		Gasket-refr Door, White, Magnetic				$ 243.34
F2	215734324		Gasket-refr Door, Black, Magnetic				$ 242.92
NI	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
NI	215361200		Foam Strip, Handle Mtg Hole		Appelez-nous	-
NI	01300019EA		Cleaner, Stainless Steel   (Replaces: 218490900)			Immediately	$ 21.27
