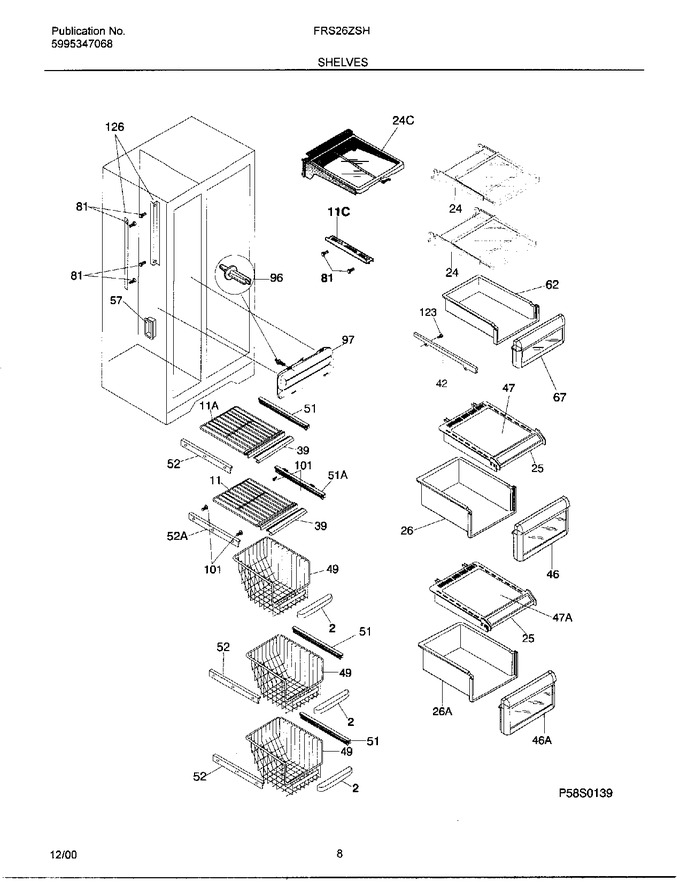

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5303298147		Trim-basket				$ 60.38
11	218298003		Shelf, Freezer, Sliding, Wire		Appelez-nous	-
24	215029002		Shelf-``spill-safe``,cantilever ,sliding		Appelez-nous	-
25	218147701		Cover-storage Pan				$ 123.56
26	5303289500		Pan-storage, Upper   (Replaces: 5303299657)				$ 174.74
39	215217543		Trim-frzr Shelf		Appelez-nous	-
42	215002301		Hanger-pan / Tray, Lh				$ 65.82
46	5304411659		Front-storage Pan, Upper   (Replaces: 218278201)				$ 206.96
47	215723574		Insert-pan Cover, Glass, Clear, W/teal Graphics		Appelez-nous	-
49	5303296573		Basket-sliding		Appelez-nous	-
51	5303296575		Hanger-basket, Rh				$ 49.78
52	215162502		Hanger, Basket, Lh, With Spring				$ 101.35
57	5303271653		Ferrule-inner				$ 20.27
62	218285701		Tray-deli		Appelez-nous	-
67	218278501		Front-deli Tray		Appelez-nous	-
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
96	215192600		Support - Water Tank				$ 10.71
97	5303918258		Water Tank   (Replaces: 241500101)				$ 121.63
101	5304455650		Screw,hex Wshr Hd ,8-18ab X 0.750 ,gusset/hanger   (Replaces: 215005000)				$ 14.18
123	215005101		Screw-roller/hanger`8-10 X 0.438   (Replaces: 215005100)				$ 14.89
126	218867402		Channel`auger Mtg ,rh		Appelez-nous	-
126	218867401		Channel,auger Mtg ,lh		Appelez-nous	-
11A	218298004		Shelf-freezer, Sliding, Wire		Appelez-nous	-
11C	240324101		Shelf-pizza				$ 59.91
24C	218842403		Shelf-``spill-safe``,sliding ,``aspect`` ,complete		Appelez-nous	-
26A	5303289501		Pan-storage,lower				$ 164.85
46A	5304411659		Front-storage Pan, Lower   (Replaces: 218278202)				$ 206.96
47A	5303289387		Insert-pan Cover,glass,clear		Appelez-nous	-
51A	5303307887		Hanger-basket, Rh				$ 61.53
52A	215162504		Hanger-basket, Lh, With Spring				$ 107.93
F24C	218826700		Clip-shelf		Appelez-nous	-
NI	215328300		Clip-shelf				$ 14.02
NI	5303307881		Control-humidity		Appelez-nous	-
NI	5303307878		Trim-storage Pan Cvr, Upper, W/humidity Hole		Appelez-nous	-
NI	5303299662		Hanger-basket, Lh				$ 119.18
NI	5303289586		Trim-storage Pan Cvr,lower		Appelez-nous	-
NI	215036602		Shelf-``spill-safe``,sliding ,included W/24		Appelez-nous	-
NI	215019701		Frame-cantilever, Spill-safe Shlf				$ 144.80
NI	215002401		Hanger-pan/tray, Rh				$ 85.84
