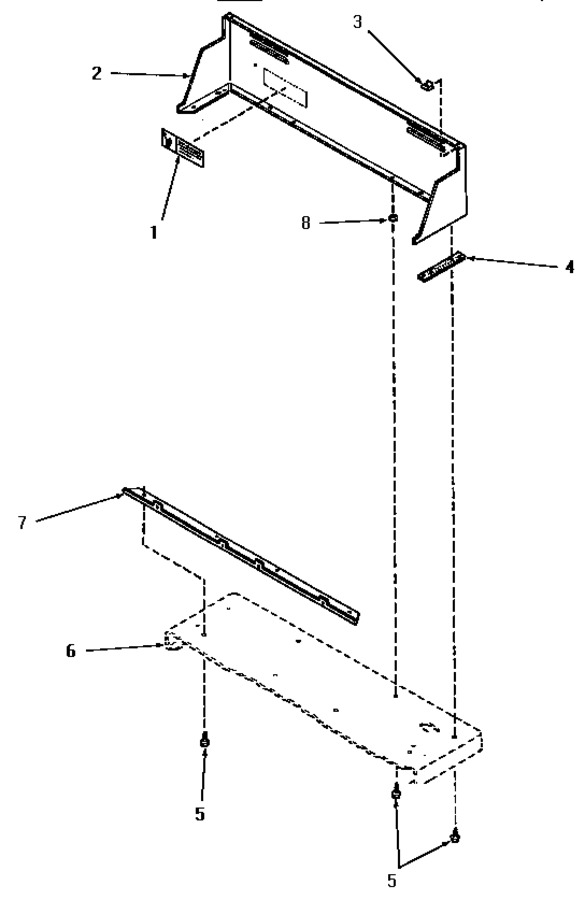

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	24903		Sticker,disconnect Pow		Appelez-nous	-
2	56014W		Control Hood, White		Appelez-nous	-
2	56014L		Control Hood, Almond		Appelez-nous	-
2	56014K		Control Hood, Coffee		Appelez-nous	-
2	56014H		Control Hood, Harvest Gold		Appelez-nous	-
2	56014A		Control Hood, Avocado		Appelez-nous	-
3	24522		Nut,speed-8ab-18 C1995		Appelez-nous	-
4	23028		Gasket,control Box End		Appelez-nous	-
5	55985		Screw,8b-18 X 3/8 Ind		Appelez-nous	-
6	Y00000000		See Note Cabinet Top		Appelez-nous	-
7	56070		Angle,mounting-control		Appelez-nous	-
8	23425		Washer,7/32idx7/16odx.		Appelez-nous	-
