Diagram for 01 - 56225 Gas Valve Assy
01 - 56225 Gas Valve Assy

Diagram for 02 - Cabinet Top
02 - Cabinet Top

Diagram for 03 - Cabinet, Exhaust Duct & Base
03 - Cabinet, Exhaust Duct & Base

Diagram for 04 - Control Hood
04 - Control Hood

Diagram for 05 - Control Panel And Controls
05 - Control Panel And Controls

Diagram for 06 - Ctrl Hood Top, Ends, Panel Support Plate
06 - Ctrl Hood Top, Ends, Panel Support Plate

Diagram for 07 - Dryer Belts
07 - Dryer Belts

Diagram for 08 - Fr Blkhd, Air Duct, Felt Seal & Cylinder
08 - Fr Blkhd, Air Duct, Felt Seal & Cylinder

Diagram for 09 - Gas Dryer Igniter
09 - Gas Dryer Igniter

Diagram for 10 - Gas Valve, Ign, Term & Gas Conv Kits
10 - Gas Valve, Ign, Term & Gas Conv Kits

Diagram for 11 - Gas Valve, Igniter & Gas Conversion Kits
11 - Gas Valve, Igniter & Gas Conversion Kits

Diagram for 12 - Heater Box
12 - Heater Box

Diagram for 13 - Loading Door, Front Panel & Seals
13 - Loading Door, Front Panel & Seals

Diagram for 14 - Motor, Exhaust Fan & Belt
14 - Motor, Exhaust Fan & Belt

Diagram for 15 - Power Cord & Terminals
15 - Power Cord & Terminals

Diagram for 16 - Rear Blkhd, Felt Seal & Cylinder Roller
16 - Rear Blkhd, Felt Seal & Cylinder Roller

Diagram for 17 - Terminal Block
17 - Terminal Block


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 Y56229 Valve,elbow Shut-off Appelez-nous -
2 Y56228 Assy,lead-in Pipe Appelez-nous -
3 Y00000000 See Note Cabinet Appelez-nous -
4 WP3177991 Screw, 8b-18 X 1/4 He   (Replaces: 23222) In-Stock Immediately $ 6.47

5 WP338906 Sensor, Flame   (Replaces: Y56231) In-Stock Immediately $ 46.72

6 52973 Screw Appelez-nous -
7 D510099 Igniter,80 Volt   (Replaces: 55438) Special Order $ 45.40

8 Y00000000 See Note Burner Housing Appelez-nous -
9 WP27001200 Hex Head Screw   (Replaces: 56264) Special Order $ 6.91

10 56233 Igniter Bracket Appelez-nous -
11 53007 Shutter,air Appelez-nous -
12 Y56234 Assembly, Burner Appelez-nous -
13 53006 Round Head Screw Appelez-nous -
14 56242 Bracket,mounting-valve Appelez-nous -
15 WP489128 Screw, 8t-32x3/8 He   (Replaces: 56124) Special Order $ 9.79

16 Y00000000 See Note Base Appelez-nous -
17 56225 Gas Valve Assembly Appelez-nous -
NI 53952 Screw,vent Appelez-nous -
NI 56412 Assy,conversion Kit-ng Appelez-nous -
NI 56427 Sticker Appelez-nous -
NI 53556 Sticker,conversion Appelez-nous -
NI 50326 Orifice,ng Appelez-nous -
NI 55753 Valve Converted Sticker Appelez-nous -
NI 53390 Plug,block-open Appelez-nous -
NI 51211 Orifice,lp No.55 Drill Appelez-nous -
NI 56414 Valve Converted Sticker Appelez-nous -
NI 56413 Assy,conversion Kit-lp Appelez-nous -
NI Y56426 L.p. Gas Stickers Appelez-nous -
NI 53408 Label,change-over Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

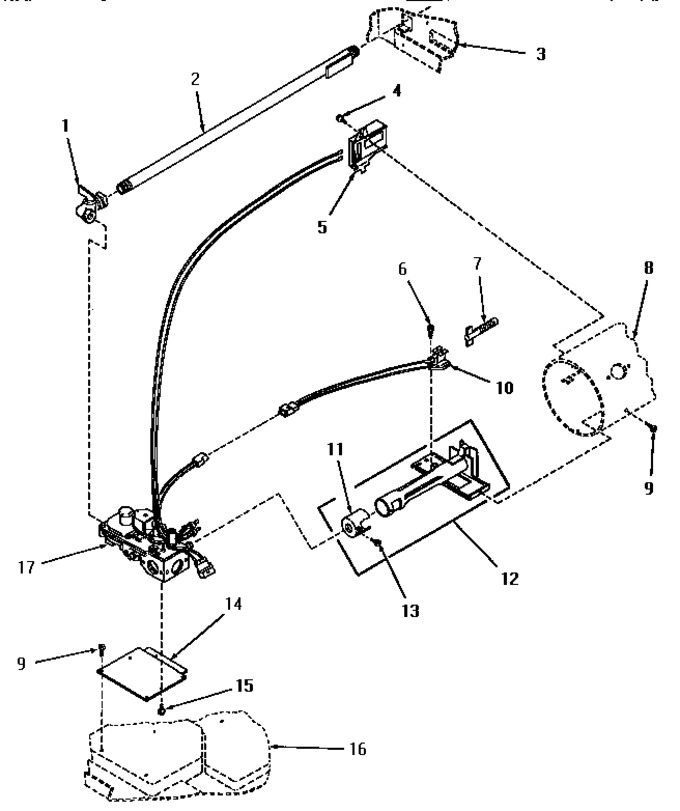

Diagram for HG9260
