SELECT A DIAGRAM

01 - Freezer Compartment

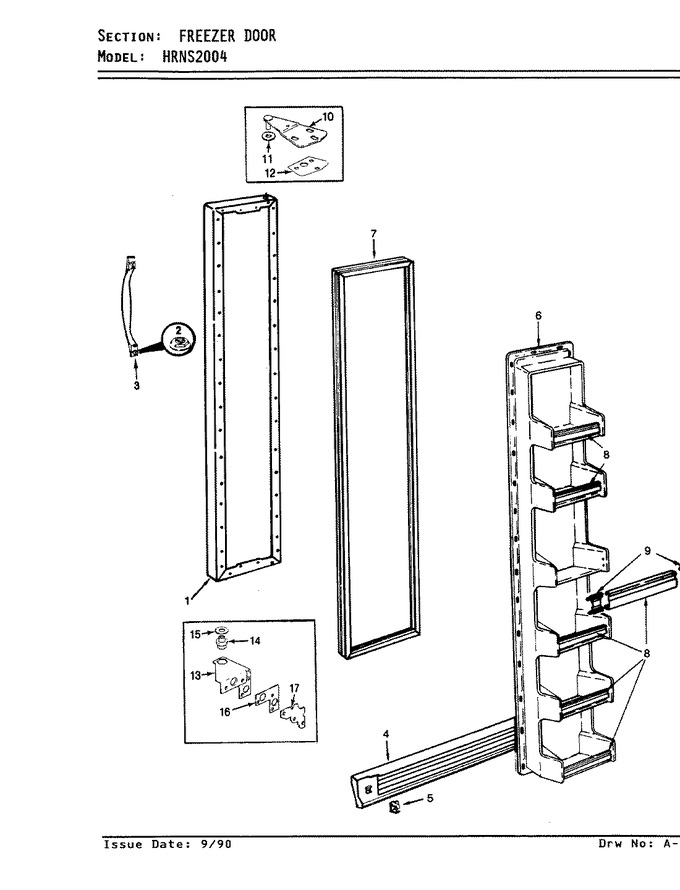

02 - Freezer Door


03 - Fresh Food Compartment


04 - Fresh Food Door


05 - Unit Compartment & System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	72046-6-AM		Panel, Frz. Door (alm)		Appelez-nous	-
2	434003-506		Fastener		Appelez-nous	-
3	63686-6		Handle		Appelez-nous	-
4	58437-45		Kickplate		Appelez-nous	-
5	52854-3		Clip, Kickplate		Appelez-nous	-
5	WP489478		Screw, Kickplate Mtg.   (Replaces: 9986-101)				$ 6.98
6	65275-5		Screw		Appelez-nous	-
6	59433-225		Inner Panel		Appelez-nous	-
7	66929-28		Gasket		Appelez-nous	-
8	WP61003045		Trim, Door Shelf   (Replaces: 65151-1)				$ 129.55
9	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)				$ 9.39
10	WP3-24838-048		Screw   (Replaces: 9986-87)				$ 7.00
10	53709-18		Door Hinge, Upper		Appelez-nous	-
11	WP52185-1		Washer   (Replaces: 52185-1)			Immediately	$ 9.47
12	65031-1		Shim, Upper Hinge		Appelez-nous	-
13	403100-1		Screw		Appelez-nous	-
13	67714-8		Hinge, Lower		Appelez-nous	-
14	68788-1		Hinge Pin		Appelez-nous	-
15	67483-3		Washer, Lower Hinge   (Replaces: 67483-2)			Immediately	$ 45.86
16	60626-1		Shim, Lower Hinge		Appelez-nous	-
17	65964-1		Tapping Plate, Lower Hinge		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
