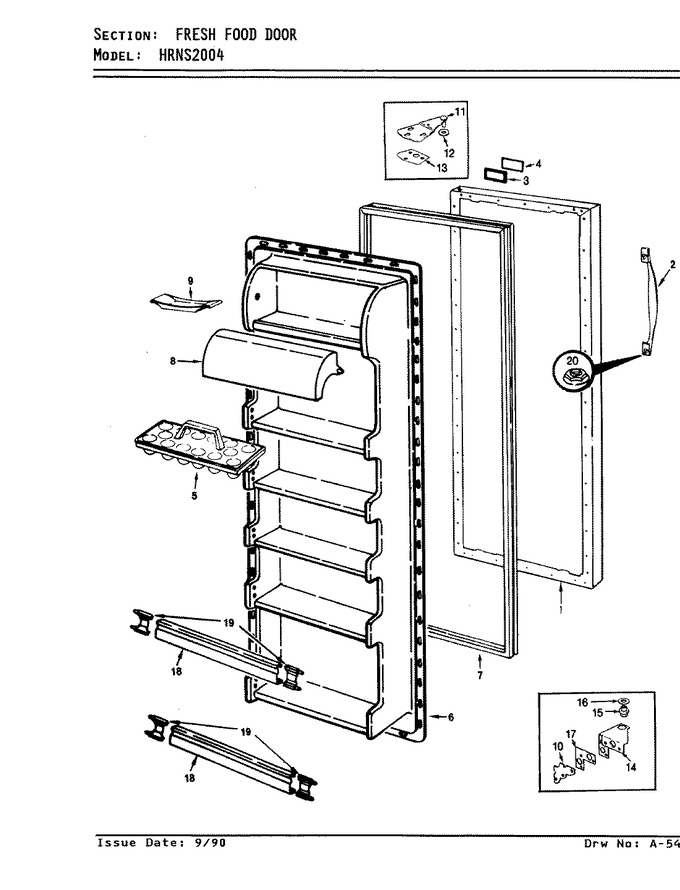

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 72047-3-AM | Panel, F.f. Door (alm) |
|
- | |||||
| 2 | 63686-6 | Handle |
|
- | |||||
| 3 | 68951-1 | Nameplate Bezel |
|
- | |||||
| 4 | 65547-4 | Insert, Nameplate |
|
- | |||||
| 5 | 60621-7 | Tray, Egg |
|
- | |||||
| 6 | 65944-18 | Liner, Door |
|
- | |||||
| 6 | 65275-5 | Screw |
|
- | |||||
| 7 | 66929-27 | Gasket |
|
- | |||||
| 8 | 66184-191 | Door, Dairy |
|
- | |||||
| 9 | 29936-4 | Tray, Butter |
|
- | |||||
| 10 | 65964-1 | Tapping Plate, Lower Hinge |
|
- | |||||
| 11 | WP3-24838-048 | Screw (Replaces: 9986-87) |
|
$ 7.00 | |||||
| 11 | 53709-18 | Door Hinge, Upper |
|
- | |||||
| 12 | WP52185-1 | Washer (Replaces: 52185-1) |
|
Immediately | $ 9.47 | ||||
| 13 | 65031-1 | Shim, Upper Hinge |
|
- | |||||
| 14 | 67714-10 | Hinge, Lower |
|
- | |||||
| 14 | 403100-1 | Screw |
|
- | |||||
| 15 | 68788-1 | Hinge Pin |
|
- | |||||
| 16 | 67483-3 | Washer, Lower Hinge (Replaces: 67483-2) |
|
Immediately | $ 45.86 | ||||
| 17 | 60626-1 | Shim, Lower Hinge |
|
- | |||||
| 18 | WP61003045 | Trim, Door Shelf (Replaces: 65151-208) |
|
$ 129.55 | |||||
| 19 | WP65245-1 | Retainer, Shelf Trim (Replaces: 65245-1) |
|
$ 9.39 | |||||
| 20 | 434003-506 | Fastener |
|
- |
