01 - Freezer Compartment


02 - Freezer Door


03 - Fresh Food Compartment


04 - Fresh Food Door


05 - Ice & Water Dispenser


06 - Ice Maker & Bin


07 - Unit Compartment & System

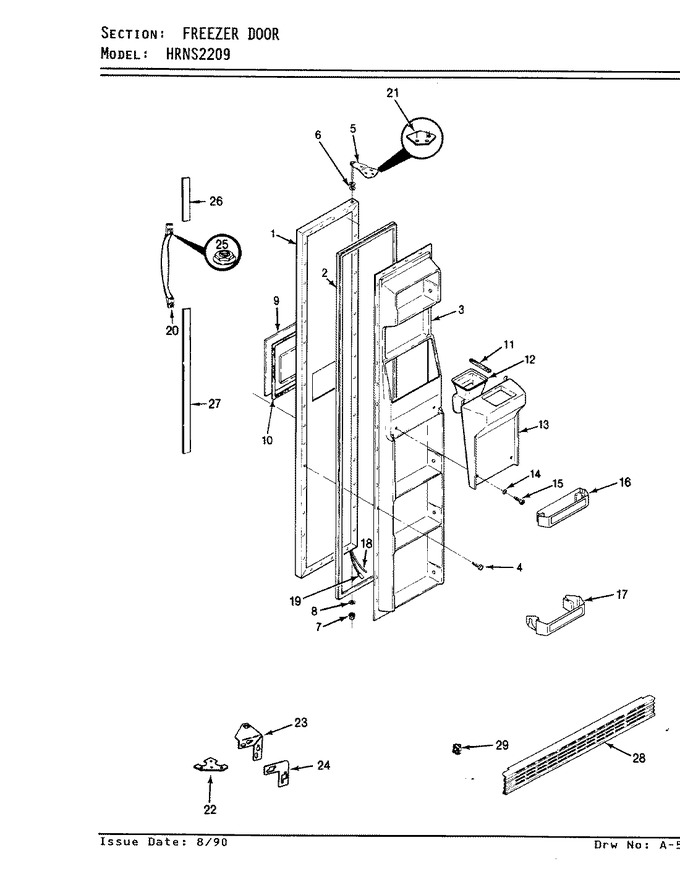

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	68456-5-AM		Panel, Outer Door		Appelez-nous	-
1	RA95060-1		Insulation Kit		Appelez-nous	-
2	66929-28		Gasket		Appelez-nous	-
3	68785-5		Insert, Food Storage		Appelez-nous	-
3	68553-3		Liner, Frz. Door		Appelez-nous	-
4	65275-5		Screw		Appelez-nous	-
5	WP3-24838-048		Screw   (Replaces: 9986-87)				$ 7.00
5	53709-18		Door Hinge, Upper		Appelez-nous	-
6	WP52185-1		Washer   (Replaces: 52185-1)			Immediately	$ 9.47
7	68789-1		Hinge Pin		Appelez-nous	-
8	67483-3		Washer, Door Spacer			Immediately	$ 45.86
9	68594-28		Escutcheon		Appelez-nous	-
10	95121-1		Tape, Escutcheon		Appelez-nous	-
11	52077-26		Seal		Appelez-nous	-
12	68570-2		Chute, Ice		Appelez-nous	-
13	68768-1		Insulation		Appelez-nous	-
13	68634-3		Access Panel		Appelez-nous	-
13	68772-1		Insulation		Appelez-nous	-
14	68786-2		Stud		Appelez-nous	-
15	W11772394		Screw   (Replaces: 400021-103)			Immediately	$ 10.94
16	68727-1		Pick Off Shelf		Appelez-nous	-
17	65701-13		Shelf Front		Appelez-nous	-
18	WPW10426709		Tubing Plastic-door Panel   (Replaces: 67187-1)				$ 126.83
19	68908-1		Wire Harness		Appelez-nous	-
20	68656-1		Handle		Appelez-nous	-
21	65031-1		Shim, Upper Hinge		Appelez-nous	-
22	65964-2		Tapping Plate		Appelez-nous	-
23	403100-801		Screw		Appelez-nous	-
23	67714-4		Hinge		Appelez-nous	-
24	60626-1		Shim, Lower Hinge		Appelez-nous	-
25	434003-506		Fastener		Appelez-nous	-
26	68615-1		Trim		Appelez-nous	-
27	68615-2		Trim		Appelez-nous	-
28	56478-26		Kickplate		Appelez-nous	-
29	WP489478		Screw, Kickplate Mtg.   (Replaces: 9986-101)				$ 6.98
29	52854-3		Clip, Kickplate		Appelez-nous	-
