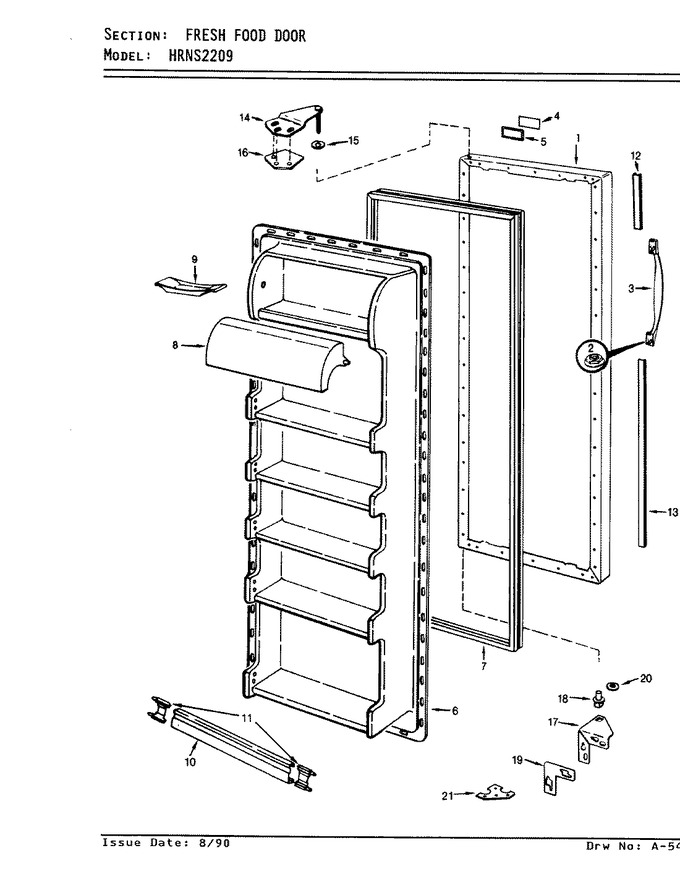

04 - Fresh Food Door
05 - Ice & Water Dispenser
06 - Ice Maker & Bin
07 - Unit Compartment & System
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | RA95060-1 | Insulation Kit |
|
- | |||||
| 1 | 68459-4-AM | Panel, F.f. Door (alm) |
|
- | |||||
| 2 | 434003-506 | Fastener |
|
- | |||||
| 3 | 68656-1 | Handle |
|
- | |||||
| 4 | 65547-4 | Insert, Nameplate |
|
- | |||||
| 5 | 68951-1 | Nameplate Bezel |
|
- | |||||
| 6 | 9986-12 | Screw,door Liner |
|
- | |||||
| 6 | 65943-11 | Liner, Door |
|
- | |||||
| 7 | 66929-14 | Gasket |
|
- |
