SELECT A DIAGRAM

01 - Freezer Compartment


02 - Freezer Door


03 - Fresh Food Compartment

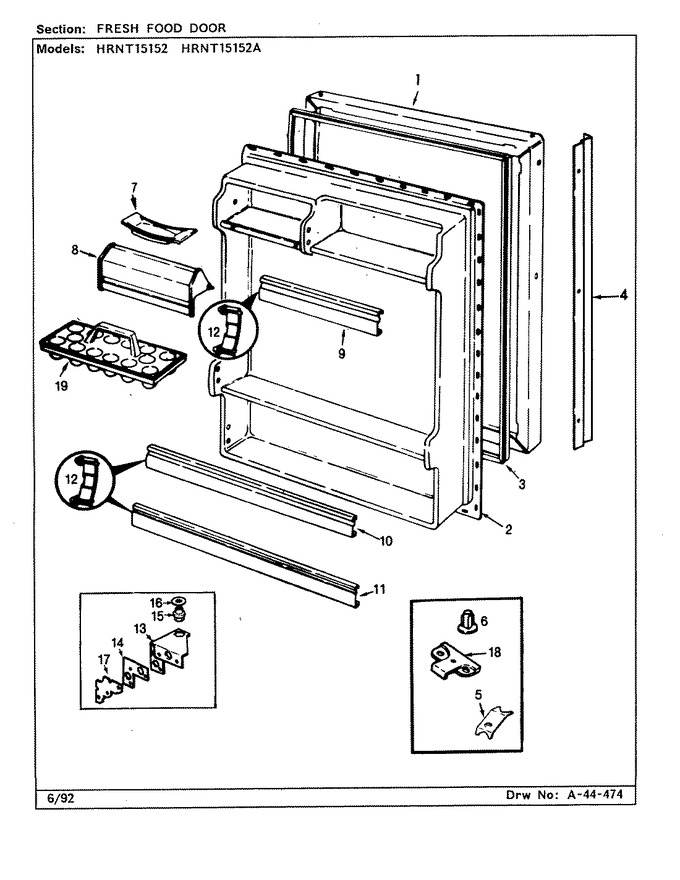

04 - Fresh Food Door


05 - Optional Ice Maker Kit


06 - Shelves & Accessories


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	68469-5-AM		Panel, F.f. Door (alm)		Appelez-nous	-
1	RA95056-1		Door Insulation Kit		Appelez-nous	-
2	65275-5		Screw		Appelez-nous	-
2	65935-14		Liner, F.f. Door		Appelez-nous	-
3	66199-2		Gasket, Door		Appelez-nous	-
4	68659-6		Handle		Appelez-nous	-
4	66799-1		Achor, Screw		Appelez-nous	-
4	65275-37		Screw, Handle		Appelez-nous	-
5	56209-3		Clip, Stop Screw		Appelez-nous	-
6	55782-6		Plug Button (almond)		Appelez-nous	-
6	67557-3		Plug, Almond		Appelez-nous	-
7	29936-2		Tray, Butter		Appelez-nous	-
8	66184-356		Door, Dairy		Appelez-nous	-
9	WP61003045		Trim, Door Shelf   (Replaces: 65151-24)				$ 129.55
10	WP61003045		Trim, Door Shelf   (Replaces: 65151-95)				$ 129.55
11	WP61003045		Trim, Door Shelf   (Replaces: 65151-113)				$ 129.55
12	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)				$ 9.39
13	67714-11		Hinge, Lower		Appelez-nous	-
13	403100-1		Screw		Appelez-nous	-
14	60626-1		Shim, Lower Hinge		Appelez-nous	-
15	68788-1		Hinge Pin		Appelez-nous	-
16	67483-3		Washer, Lower Hinge   (Replaces: 67483-2)			Immediately	$ 45.86
17	403100-1		Screw		Appelez-nous	-
17	65790-3		Tapping Plate		Appelez-nous	-
18	60419-10		Door Stop		Appelez-nous	-
18	65275-48		Screw		Appelez-nous	-
19	60066-1		Tray, Egg		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
