SELECT A DIAGRAM
01 - Freezer Compartment
02 - Freezer Door
03 - Fresh Food Compartment
04 - Fresh Food Door
05 - Optional Ice Maker Kit

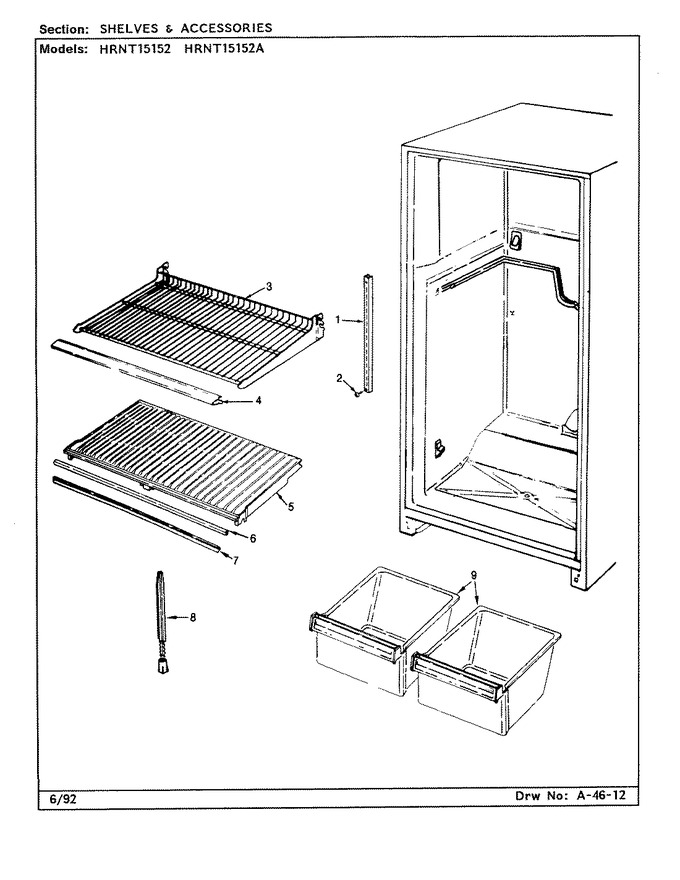

06 - Shelves & Accessories
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 60096-8 | Rail, Shelf Support (rt) |
|
- | |||||
| 1 | 60096-7 | Rail, Shelf Support (lt) |
|
- | |||||
| 2 | 400037-28 | Screw |
|
- | |||||
| 3 | 60417-21 | Shelf, Full |
|
- | |||||
| 4 | 60414-61 | Trim |
|
- | |||||
| 5 | 66834-1 | Shelf, Crisper |
|
- | |||||
| 6 | 60454-9 | Trim, Crisper Shelf |
|
- | |||||
| 7 | 60148-4 | Seal, Crisper Shelf |
|
- | |||||
| 8 | 12001957 | Support, Crisper Shelf (Replaces: 66105-1) |
|
$ 3.35 | |||||
| 9 | 68221-417 | Pan, Crisper |
|
- |
