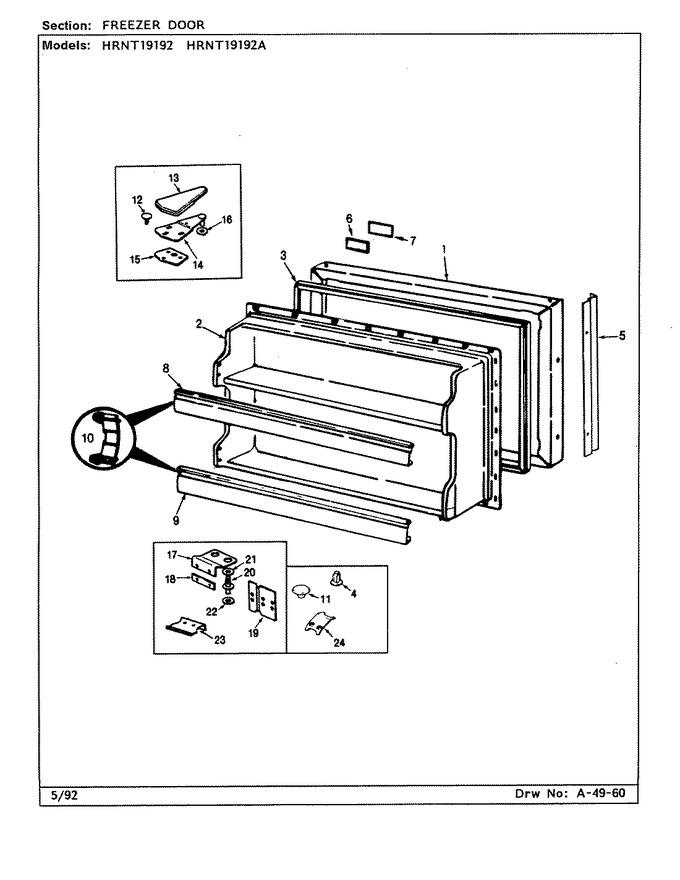

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	68474-8-AM		Panel, Frz. Door (alm)		Appelez-nous	-
2	65928-5		Liner, Frz. Door		Appelez-nous	-
2	65275-5		Screw		Appelez-nous	-
3	66199-5		Gasket, Frz. Door		Appelez-nous	-
4	67557-3		Plug, Almond		Appelez-nous	-
4	55782-6		Plug Button (almond)		Appelez-nous	-
5	66799-1		Achor, Screw		Appelez-nous	-
5	65275-37		Screw, Handle		Appelez-nous	-
6	69076-1		Bezel, Nameplate		Appelez-nous	-
7	68061-6		Insert, Nameplate		Appelez-nous	-
8	WP61003045		Trim, Door Shelf   (Replaces: 65151-123)				$ 129.55
9	WP61003045		Trim, Door Shelf   (Replaces: 65151-134)				$ 129.55
10	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)				$ 9.39
11	67634-3		Plug Button, Hinge Cup (alm)		Appelez-nous	-
12	56144-9		Plug Button, Hinge Screw (alm)		Appelez-nous	-
13	65003-3		Cover, Upper Hinge (alm)		Appelez-nous	-
14	53709-24		Hinge, Upper		Appelez-nous	-
14	WP3-24838-048		Screw   (Replaces: 65275-52)				$ 7.00
15	65031-1		Shim, Upper Hinge		Appelez-nous	-
16	54233-1		Washer				$ 7.71
17	68811-3		Hinge, Center		Appelez-nous	-
18	68812-1		Shim, Center Hinge		Appelez-nous	-
19	65275-55		Screw		Appelez-nous	-
19	68377-1		Tapping Plate, Center Hinge		Appelez-nous	-
20	67322-1		Pin, Center Hinge		Appelez-nous	-
21	67483-1		Washer, Center Hinge (upper)		Appelez-nous	-
22	54233-2		Washer		Appelez-nous	-
23	65275-48		Screw		Appelez-nous	-
23	68988-1		Stop, Door		Appelez-nous	-
24	60123-2		Clip, Stop Screw		Appelez-nous	-
