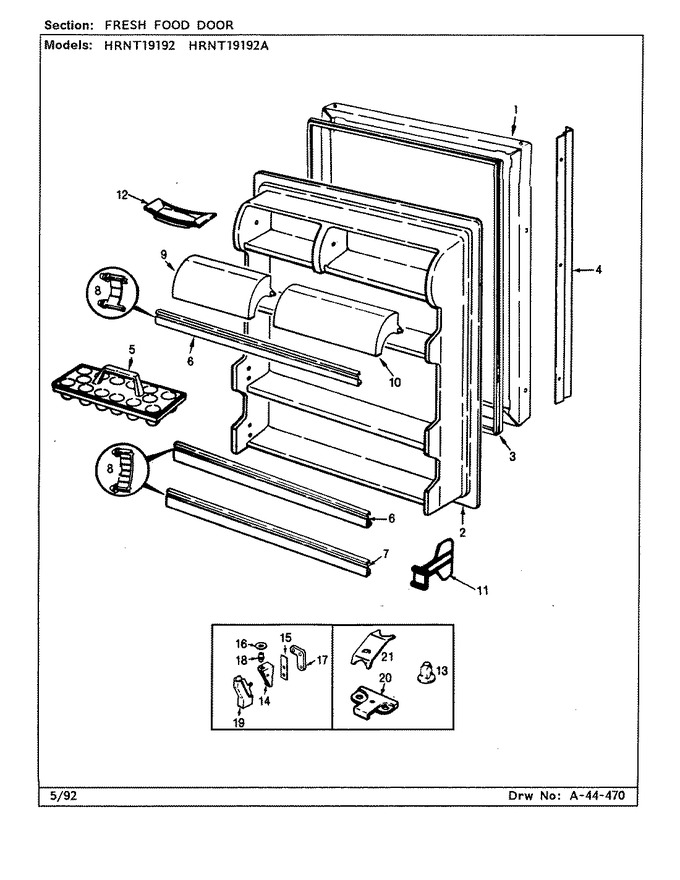

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	RA95056-1		Door Insulation Kit		Appelez-nous	-
1	68473-5-AM		Panel, Outer (alm)		Appelez-nous	-
2	68719-1		Liner, F.f. Door		Appelez-nous	-
2	65275-5		Screw		Appelez-nous	-
3	WP70048-3		Gasket, F.f. Door   (Replaces: 66199-6)				$ 283.11
4	68659-3		Handle		Appelez-nous	-
4	68659-5		Handle		Appelez-nous	-
4	66799-1		Achor, Screw		Appelez-nous	-
4	65275-37		Screw, Handle		Appelez-nous	-
5	60066-1		Tray, Egg		Appelez-nous	-
6	WP61003045		Trim, Door Shelf   (Replaces: 65151-134)				$ 129.55
7	WP61003045		Trim, Door Shelf   (Replaces: 65151-336)				$ 129.55
8	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)				$ 9.39
9	66184-365		Door, Dairy		Appelez-nous	-
10	66184-366		Door, Dairy		Appelez-nous	-
11	64097-11		Organizer, Shelf		Appelez-nous	-
12	29936-2		Tray, Butter		Appelez-nous	-
13	67557-3		Plug, Almond		Appelez-nous	-
14	65275-51		Screw, Lower Hinge		Appelez-nous	-
14	68975-2		Hinge, Lower		Appelez-nous	-
15	69031-3		Shim		Appelez-nous	-
16	67483-3		Washer, Lower Hinge   (Replaces: 67483-2)			Immediately	$ 45.86
17	65275-59		Screw		Appelez-nous	-
17	67874-1		Tapping Plate, Lower Hinge		Appelez-nous	-
18	68977-1		Pin, Hinge		Appelez-nous	-
19	68978-1		Cover, Lower Hinge (blk)		Appelez-nous	-
20	68987-1		Stop, Door		Appelez-nous	-
20	65275-48		Screw		Appelez-nous	-
21	56209-3		Clip, Stop Screw		Appelez-nous	-
