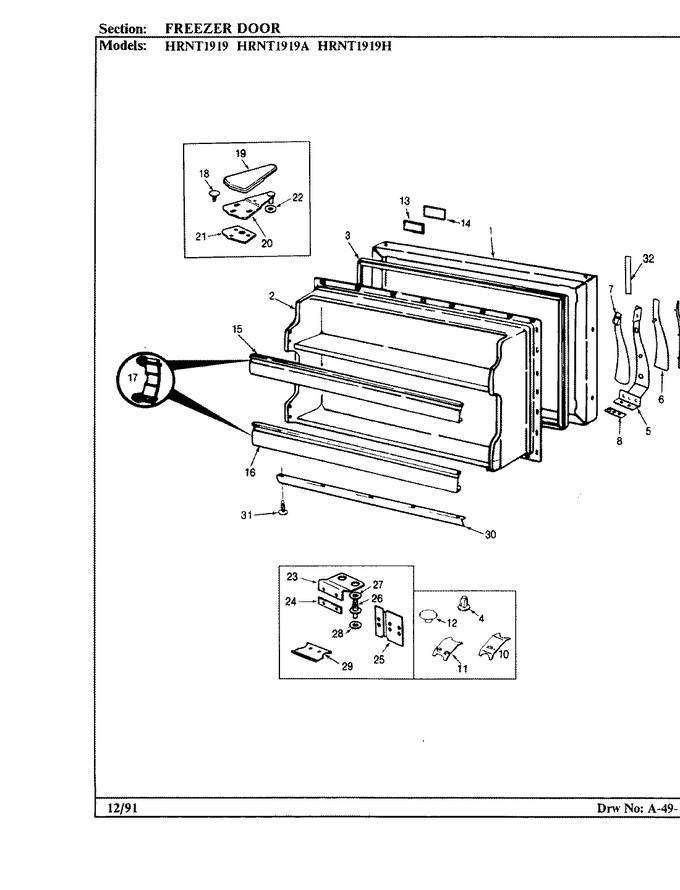

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	72045-3-AM		Panel, Frz. Door (alm)		Appelez-nous	-
2	65275-5		Screw		Appelez-nous	-
2	65928-18		Liner, Door		Appelez-nous	-
3	66199-5		Gasket, Frz. Door		Appelez-nous	-
4	55782-6		Plug Button (almond)		Appelez-nous	-
5	65275-57		Screw		Appelez-nous	-
5	66255-1		Door Handle		Appelez-nous	-
6	68036-4		Insert (alm)		Appelez-nous	-
7	65275-53		Screw		Appelez-nous	-
7	60580-6		Insert		Appelez-nous	-
8	68776-1		Shim Handle----na		Appelez-nous	-
9	68048-5		Insert, Vinyl		Appelez-nous	-
10	56209-3		Clip, Stop Screw		Appelez-nous	-
11	60123-2		Clip, Stop Screw		Appelez-nous	-
12	67634-3		Plug Button, Hinge Cup (alm)		Appelez-nous	-
13	69076-1		Bezel, Nameplate		Appelez-nous	-
14	68061-6		Insert, Nameplate		Appelez-nous	-
15	WP61003045		Trim, Door Shelf   (Replaces: 65151-123)				$ 129.55
16	WP61003045		Trim, Door Shelf   (Replaces: 65151-134)				$ 129.55
17	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)				$ 9.39
18	56144-9		Plug Button, Hinge Screw (alm)		Appelez-nous	-
19	65003-3		Cover, Upper Hinge (alm)		Appelez-nous	-
20	WP3-24838-048		Screw   (Replaces: 65275-52)				$ 7.00
20	53709-20		Hinge, Upper		Appelez-nous	-
21	65031-1		Shim, Upper Hinge		Appelez-nous	-
22	54233-1		Washer				$ 7.71
23	68811-2		Hinge, Center		Appelez-nous	-
24	68812-1		Shim, Center Hinge		Appelez-nous	-
25	68377-1		Tapping Plate, Center Hinge		Appelez-nous	-
25	65275-24		Screw		Appelez-nous	-
26	67322-1		Pin, Center Hinge		Appelez-nous	-
27	67483-1		Washer, Center Hinge (upper)		Appelez-nous	-
28	54233-2		Washer		Appelez-nous	-
29	60030-1		Door Stop		Appelez-nous	-
29	65275-57		Screw		Appelez-nous	-
30	68544-2		Gasket, Secondary		Appelez-nous	-
31	56686-5		Clip, Secondary Seal		Appelez-nous	-
32	60453-22		Handle Trim Extension		Appelez-nous	-
