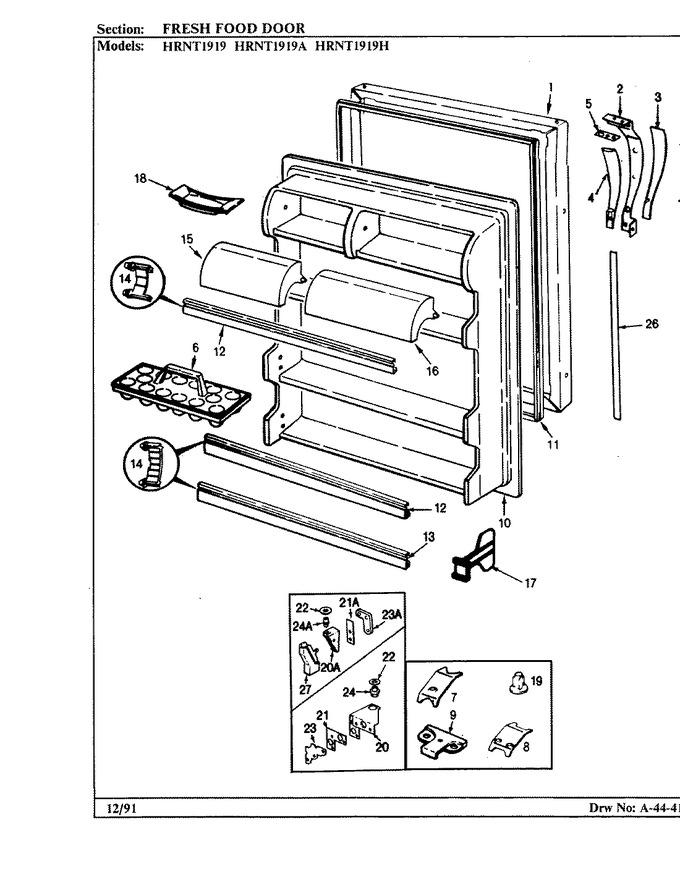

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	RA95056-1		Door Insulation Kit		Appelez-nous	-
1	68473-3-AM		Panel, F.f. Door (alm)		Appelez-nous	-
2	65275-57		Screw		Appelez-nous	-
2	66255-2		Door Handle		Appelez-nous	-
3	68036-4		Insert (alm)		Appelez-nous	-
4	65275-53		Screw		Appelez-nous	-
4	60580-6		Insert		Appelez-nous	-
5	68776-1		Shim Handle----na		Appelez-nous	-
6	60066-1		Tray, Egg		Appelez-nous	-
7	56209-3		Clip, Stop Screw		Appelez-nous	-
8	60123-2		Clip, Stop Screw		Appelez-nous	-
9	60419-10		Door Stop		Appelez-nous	-
10	65275-5		Screw		Appelez-nous	-
10	68719-1		Liner, F.f. Door		Appelez-nous	-
11	WP70048-3		Gasket, F.f. Door   (Replaces: 66199-6)				$ 283.11
12	WP61003045		Trim, Door Shelf   (Replaces: 65151-134)				$ 129.55
13	WP61003045		Trim, Door Shelf   (Replaces: 65151-336)				$ 129.55
14	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)				$ 9.39
15	66184-365		Door, Dairy		Appelez-nous	-
16	66184-366		Door, Dairy		Appelez-nous	-
17	64097-11		Organizer, Shelf		Appelez-nous	-
18	29936-2		Tray, Butter		Appelez-nous	-
19	55782-6		Plug Button (almond)		Appelez-nous	-
20	403100-1		Screw		Appelez-nous	-
20	67714-6		Hinge, Lower		Appelez-nous	-
21	60626-1		Shim, Lower Hinge		Appelez-nous	-
22	67483-3		Washer, Lower Hinge   (Replaces: 67483-2)			Immediately	$ 45.86
23	403100-1		Screw		Appelez-nous	-
23	65790-3		Tapping Plate		Appelez-nous	-
24	68788-1		Hinge Pin		Appelez-nous	-
25	68048-5		Insert, Vinyl		Appelez-nous	-
26	60453-21		Handle Trim Extension		Appelez-nous	-
