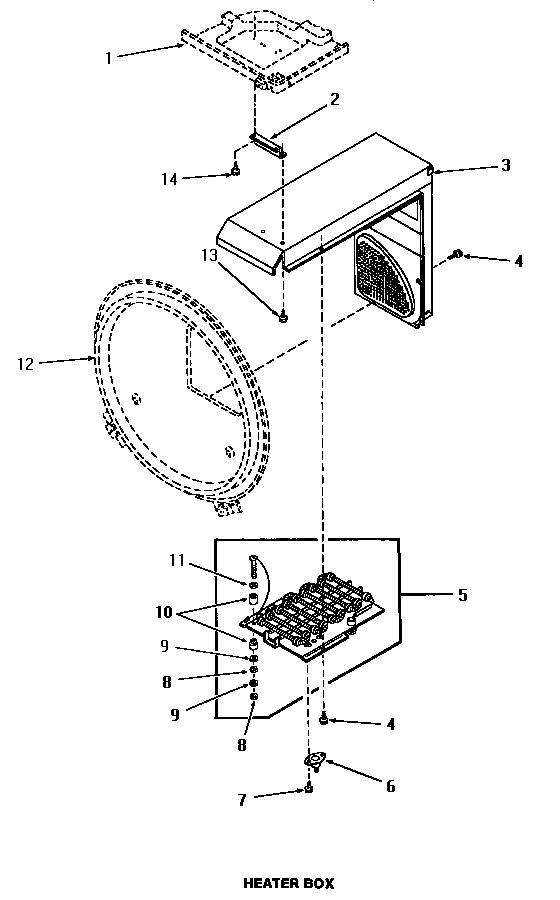

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y00000000		See Note Top, Base		Appelez-nous	-
2	58765		Bracket,z		Appelez-nous	-
3	58762		Assy,heater Duct & Cov		Appelez-nous	-
4	WP27001200		Hex Head Screw   (Replaces: 56264)				$ 6.91
5	58738		Assy,heater Element &				$ 141.76
6	56082		Thermostat,limit				$ 30.05
7	WP3177991		Screw, 8b-18 X 1/4 He   (Replaces: 23222)			Immediately	$ 6.47
8	56563		Hex Nut No.10-32 Nickel		Appelez-nous	-
9	56552		Lockwasher		Appelez-nous	-
10	57408		Insulator		Appelez-nous	-
11	20176		Washer,.2656idx9/16odx		Appelez-nous	-
12	Y00000000		See Note Rear Bulkhead		Appelez-nous	-
13	WP3390631		Hex Head Screw   (Replaces: 51780)				$ 7.04
	NOTE:		2. Siphon Break Kit Must Be Installed In Drain Hose If The Drain Receptacle Islower Than The Drain Elbow At The Rear Of The Unit.		Appelez-nous	-
