SELECT A DIAGRAM

01 - Agitator & Post


02 - Brg Hsg/brake/pulley & Pivot Dome


03 - Cabinet Top & Lid


04 - Cabinet, Exhaust Duct & Top (base)


05 - Control Panel & Controls (washer)


06 - Control Panel (dryer)


07 - Dryer Heater Box


08 - Dryer Loading Door, Front Panel & Seals


09 - Fr Blkhd, Air Duct, Felt Seal & Cylinder


10 - Inlet/fill Hose/back Fl Preventer & Brkt


11 - Lint Filter, Washtub & Hub


12 - Mixing Valve Assy


13 - Motor, Exhaust Fan & Belt


14 - Motor, Mtg Bracket, Belt & Idler Assy


15 - Outer Tub, Cover & Pressure Hose


16 - Pump Assy, Hoses & Siphon Break Kit


17 - Rear Blkhd, Felt Seal & Cylinder Roller


18 - Short Post Drive (addition)


19 - Side Panels, Front Panel & Inner Base


20 - Solenoid & Lock Assemblies


21 - Terminal Block & Bracket


22 - Terminals (dryer)


23 - Terminals (washer)


24 - Transmission Assy


25 - Transmission Assy & Balance Ring


26 - Washer Outer Cabinet & Leveling Legs


27 - Wire Harnesses & Power Cord (dryer)


28 - Wire Harnesses & Power Cord (washer)

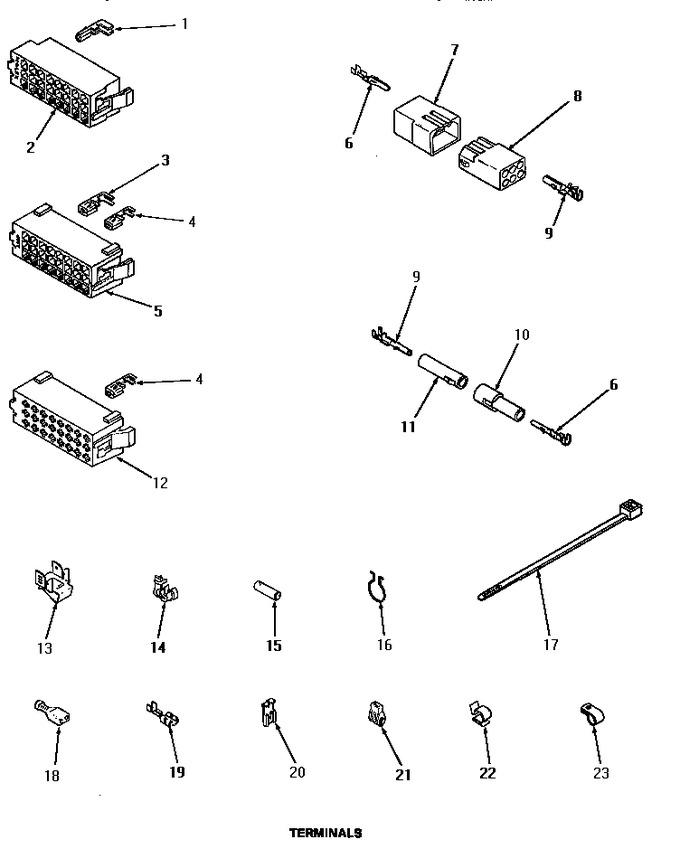

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	24176		Molex Terminal		Appelez-nous	-
2	24175		Housing,r.h.		Appelez-nous	-
3	00183		Terminal,female 2-wire		Appelez-nous	-
4	00180		Terminal,female		Appelez-nous	-
5	28856		Housing,24 Position		Appelez-nous	-
6	Y00116		Terminal,pin-male		Appelez-nous	-
7	23041		Plug,6 Circuit		Appelez-nous	-
7	23040		Plug, 3 Circuit		Appelez-nous	-
7	23037		Plug,15 Circuit			Immediately	$ 19.74
8	23039		Receptacle,3 Circuit		Appelez-nous	-
8	23042		Receptacle		Appelez-nous	-
8	23038		Receptacle,15 Circuit		Appelez-nous	-
9	Y00117		Female Socket Terminal		Appelez-nous	-
10	26302		Plug,1 Circuit		Appelez-nous	-
11	26301		Receptacle,molex				$ 78.98
12	28855		Housing,24 Position-l.		Appelez-nous	-
13	Y00161		Ground Clip		Appelez-nous	-
14	52151		Relief, Strain		Appelez-nous	-
15	Y21365		Insulator Sleeve		Appelez-nous	-
16	51291		Clip,wire		Appelez-nous	-
17	COMM PART		Wire Tie   (Replaces: 55881)		Appelez-nous	-
18	WP285432		Terminal   (Replaces: Y00163)				$ 6.99
19	Y00119		Spade Terminal(18 Gauge)		Appelez-nous	-
20	Y00120		Terminal,flag-1/4 Fema		Appelez-nous	-
21	70210		Insulator,blue		Appelez-nous	-
22	21036		Clip,cable				$ 62.49
23	90213		Wire Harness Clip		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
