Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10841139 Compressor Kit   (Replaces: 12002741) 10 In-Stock Immediately $ 433.30

1 67001333 Screw 10 Appelez-nous -
2 WP4387558 Grommet, Compressor   (Replaces: 61005241) 10 Special Order $ 6.26

3 67002538 Shim, Light Switch 10 Appelez-nous -
3 67001368 Switch, Light 10 Special Order $ 31.45

4 WP61002138 Cover, Terminal   (Replaces: 61002138) 10 Special Order $ 7.89

5 67001334 Rail, Compressor 10 Appelez-nous -
5 WP489478 Screw   (Replaces: 400017-1) 10 Special Order $ 6.98

6 67001335 Pan, Compressor Mtg. 10 Appelez-nous -
7 W11613295 Motor, Condenser Fan   (Replaces: 61006190) 10 In-Stock Immediately $ 123.16

7 WP90767 Screw   (Replaces: 61005324) 10 In-Stock Immediately $ 7.04

8 61001414 Bracket, Fan Motor 10 Appelez-nous -
9 61004743 Grommet, Bracket 10 Special Order $ 5.51

10 67001336 Screw 10 Appelez-nous -
10 61005325 Adapter, Fan Motor 10 Special Order $ 23.75

11 W10156818 Blade, Condenser Fan   (Replaces: 61006191) 10 In-Stock Immediately $ 55.90

12 67006553 Brace, Hinge 10 Appelez-nous -
13 67001894 Heat Exchanger Assy. 10 Appelez-nous -
14 WPW10143759 Drier   (Replaces: 13900-1) 10 In-Stock Immediately $ 27.70

15 67005115 Condenser 10 Special Order $ 218.01

16 67001339 Baffle, Condenser Seal 10 Appelez-nous -
17 WP8281227 Screw   (Replaces: 61002819) 10 Special Order $ 9.40

17 67001340 Extension, Condenser 10 Appelez-nous -
18 67001341 Clip, Thermister 10 Appelez-nous -
19 67001342 Thermister 10 Special Order $ 67.45

19 65275-33 Screw 10 Appelez-nous -
20 WP8281227 Screw   (Replaces: 61002819) 10 Special Order $ 9.40

20 67001343 Pan, Drain 10 Appelez-nous -
21 67002534 Wick, Condensation 10 Appelez-nous -
22 67002535 Cord, Power (w/harness) 10 Appelez-nous -
23 67001347 Bracket, Filter Switch 10 Appelez-nous -
23 WP8281227 Screw   (Replaces: 61002819) 10 Special Order $ 9.40

24 67003198 Switch 10 Appelez-nous -
25 67003198 Switch 10 Appelez-nous -
26 WP8281227 Screw   (Replaces: 61002819) 10 Special Order $ 9.40

26 67001349 Bracket, Water Filter 10 Appelez-nous -
26 67001350 Screw 10 Appelez-nous -
27 67001352 Head, Water Filter 10 Appelez-nous -
28 61003791 Plug, Filter Bypass 10 Special Order $ 25.08

29 67001351 Fitting, Water Filter 10 Appelez-nous -
30 67001351 Fitting, Water Filter 10 Appelez-nous -
31 67006273 Filter, Water 10 Appelez-nous -
32 WP8281227 Screw   (Replaces: 61002819) 10 Special Order $ 9.40

32 67001353 Valve Assy., Pressure Relief 10 Appelez-nous -
32 67001904 Screen 10 Appelez-nous -
33 67001354 Divider, Machine Compartment 10 Appelez-nous -
34 67001355 Bracket, Electrical 10 Appelez-nous -
34 WP8281227 Screw   (Replaces: 61002819) 10 Special Order $ 9.40

35 67001356 Switch, Main Shut Off 10 Special Order $ 64.01

36 67001357 Switch, C/f Temp. Display 10 Appelez-nous -
37 12002799 Board, Compressor (inverter)   (Replaces: 67006163) 10 Special Order $ 483.59

38 67006252 Retainer, Upper 10 Appelez-nous -
38 WP8281227 Screw   (Replaces: 61002819) 10 Special Order $ 9.40

39 WP67001360 Supply, Power   (Replaces: 67001360) 10 Special Order $ 457.97

40 67006259 Board, Main Display 10 Special Order $ 359.08

41 67001528 Standoffs, Circuit Board 10 Appelez-nous -
42 WP8281227 Screw   (Replaces: 61002819) 10 Special Order $ 9.40

42 67006164 Cover, Circuit Board 10 Appelez-nous -
43 67006556 Frame, Machine Compt. (slv) 10 Appelez-nous -
44 WP8281227 Screw   (Replaces: 61002819) 10 Special Order $ 9.40

44 67001367 Trim, Cabinet Top (slv) 10 Appelez-nous -
45 67006169 Hinge (lt) 10 Appelez-nous -
45 67006170 Hinge (rt) 10 Appelez-nous -
45 WP8281227 Screw   (Replaces: 61002819) 10 Special Order $ 9.40

45 67001328 Screw 10 Appelez-nous -
46 67006171 Bracket, Hinge 10 Appelez-nous -
47 WP8281227 Screw   (Replaces: 61002819) 10 Special Order $ 9.40

47 WP12936101 Retainer, Lower   (Replaces: 67006254) 10 Special Order $ 9.14

48 67006256 Bracket, Comp. Pan Rear 10 Appelez-nous -
48 WP489399 Screw   (Replaces: 61001885) 10 Special Order $ 6.26

49 67005166 Tether 10 Appelez-nous -
50 67006167 Wire Harness, Pc Board 10 Special Order $ 41.04

50 WP67006166 Wire Harness, Comp. Board   (Replaces: 67006166) 10 Special Order $ 4.95

50 67001366 Wire Harness, Temp. Switch 10 Appelez-nous -
50 67001365 Wire Harness, Power Supply 10 Appelez-nous -
50 67001363 Wire Harness, Compressor 10 Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

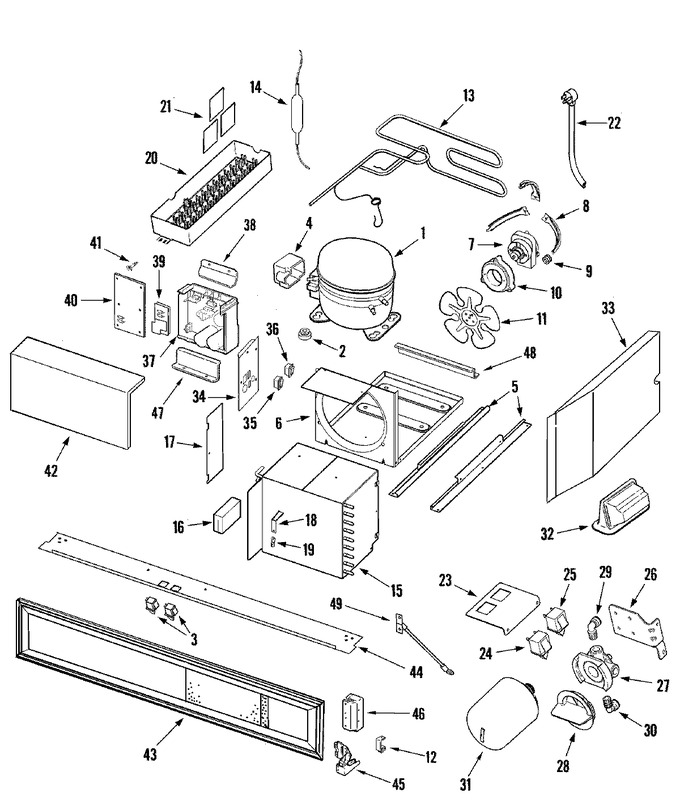

Diagram for IF48BDCBOL
