SELECT A DIAGRAM

01 - Cabinet


02 - Compressor


03 - Controls


04 - Evaporator Compartment


05 - Fountain


06 - Freezer Door


07 - Fresh Food Door


08 - Ice Bin


09 - Ice Maker


10 - Shelves & Accessories (freezer)


11 - Shelves & Accessories (fresh Food)


12 - Supplemental Information


13 - Wiring Information


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

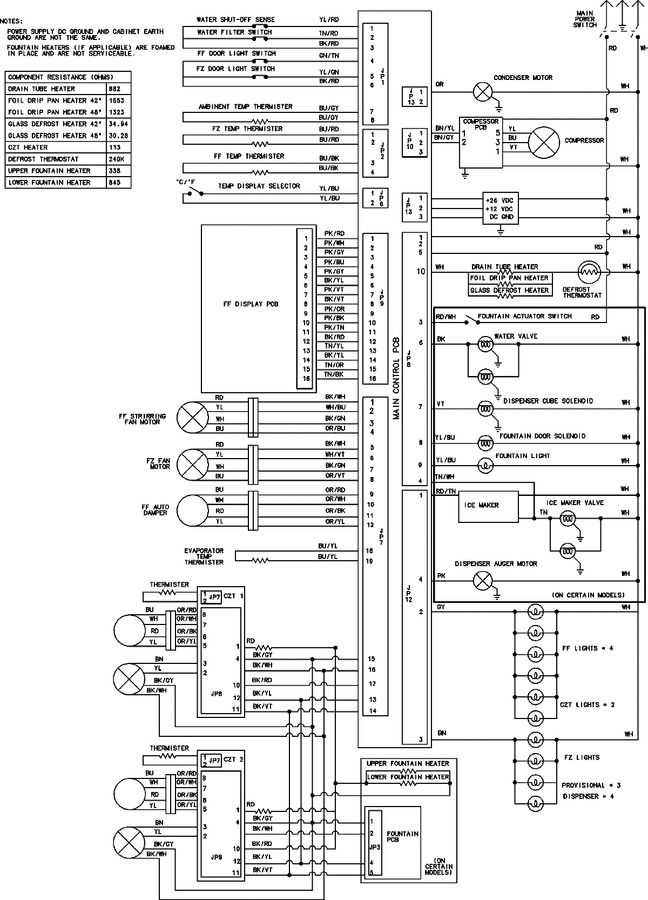

NI	15003859		Wiring Information	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
